Overview

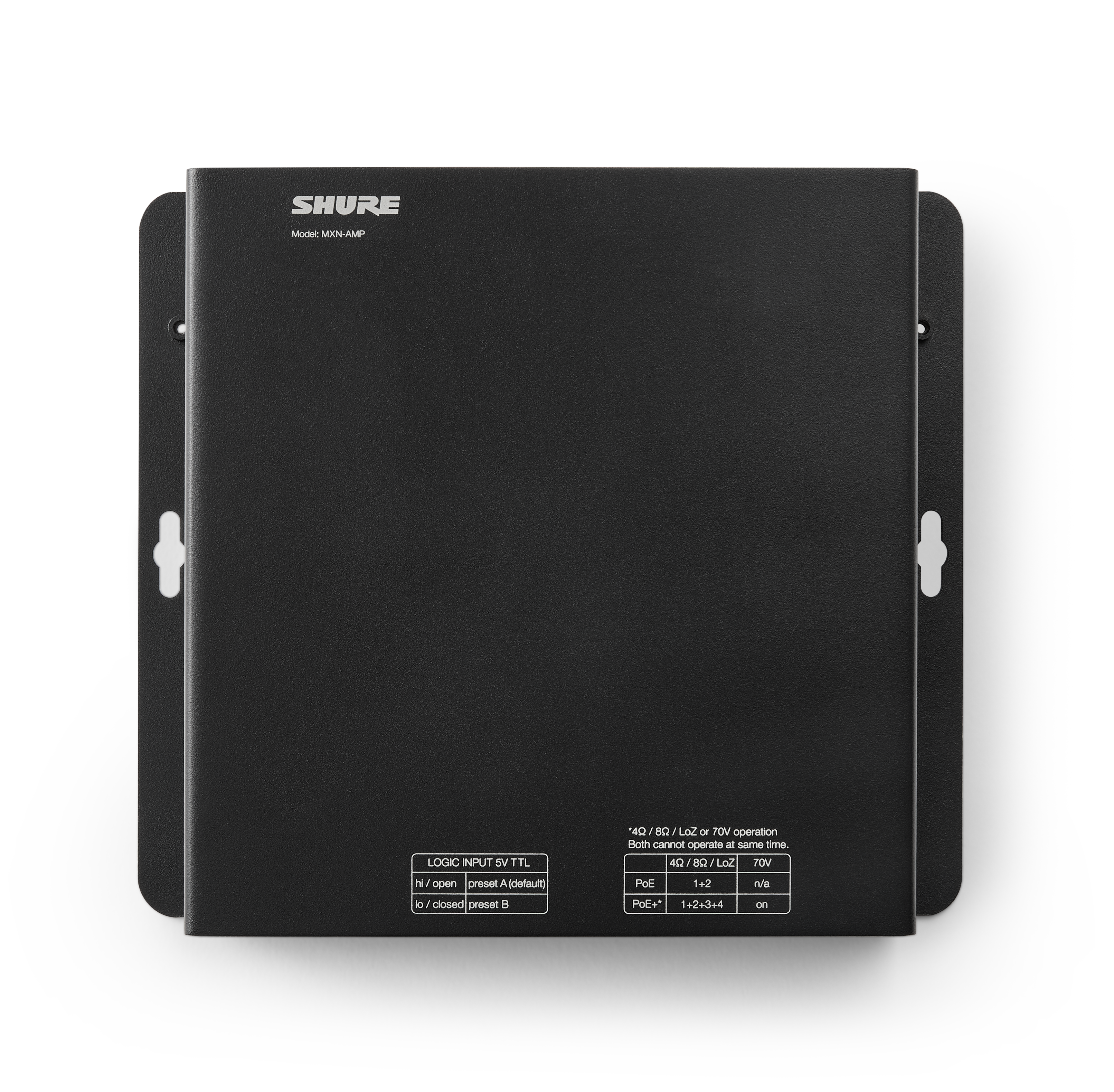

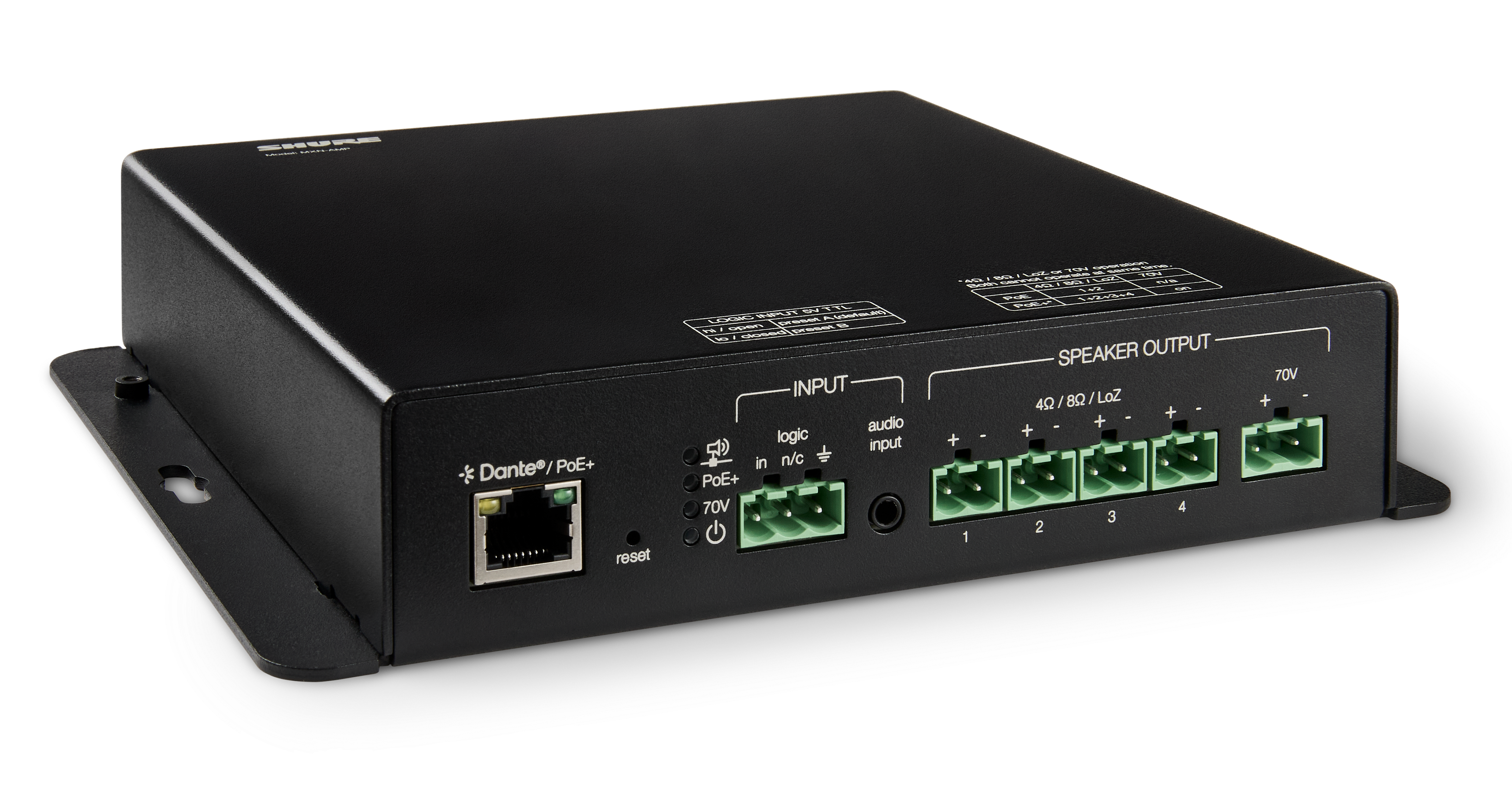

Multichannel PoE+ powered amplifier designed for speech and program audio reproduction in meeting rooms. The Microflex® Conferencing amplifier is designed for conferencing with clear, intelligible audio. When used with Microflex Ecosystem microphones, DSP, and loudspeakers, they deliver room-filling sound, quick installation in a variety of room types, and the efficiency of a single-source solution.
Details
Powerfully Simple
- Can power up to 4 MXP loudspeakers in 8 ohm mode, or up to 8 MXP-5/MXP-6 loudspeakers in 70V mode.
- Rated at 14.5 watts of combined output power.
Unmatched I/O Flexibility
- Four Dante inputs and four Dante outputs.
- Unbalanced stereo analog audio input.
- Logic input (switches between presets 1 and 2 as defined in web UI).
Dial In Great Sound
- Onboard Shure DSP utilities include EQ, delay, limiter, and signal/tone generator.
- Presets for all MXP-series loudspeakers ensure optimal audio performance. Custom presets can be defined in the MXN-AMP control software.
Easy Installation
- Can be rack mounted with available CRT-1 rack tray.
- Can also be wall or ceiling mounted. (Note: Shure recommends the use of an additional safety tether for overhead components).
- UL 2043 Plenum rated.
Confident Communication
- Supports standards-based security protocols to manage access and protect data, including 802.1x, secure boot/storage, and AES encryption for control and audio data.
- Shure Audio Encryption keeps audio content protected between the MXN-AMP and other Shure Microflex® Ecosystem devices in the room.
Certified For Success
- Seamless connectivity and compatibility with popular collaboration platforms, including Microsoft Teams
What's in the Box
- 1 Microflex® MXN-AMP PoE Powered Amplifier
- 1 Logic input block connector
- 4 LoZ output block connectors
- 1 70V output connector
- 2 1/4” screws, #4-40 UNC thread
