Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

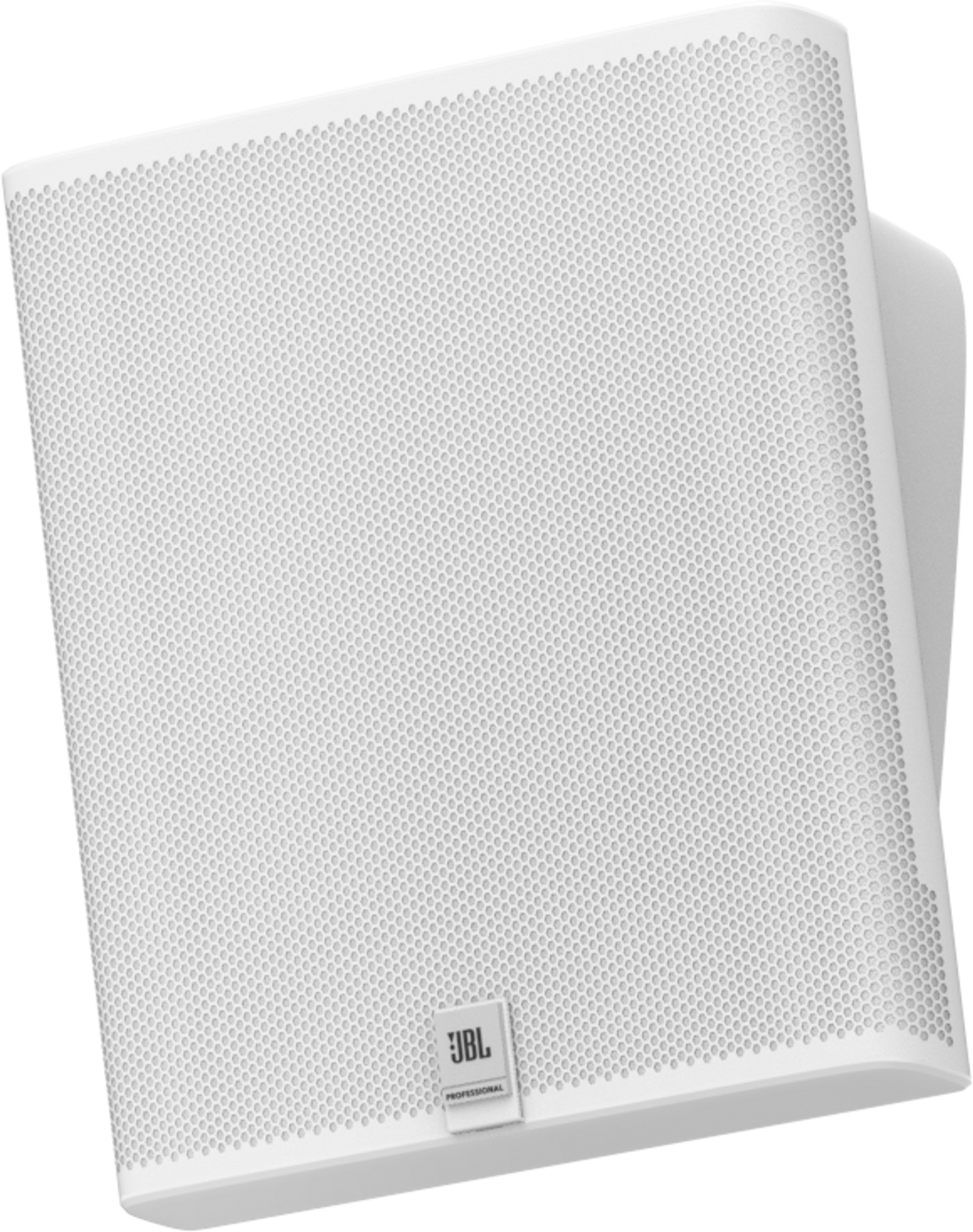

The stylish, highly versatile JBL SLP12/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.
| Frequency Range (-10dB) | 74 Hz - 20 kHz |
| Frequency Response (+/-3 dB) | 91 Hz - 18 kHz |
| Power Rating | 80W Continuous Program (2 hrs) 40W (160W peak) Continous Pink Noise (2 hrs) 20W (80W peak) Continuous Pink Noise (100 hrs) |
| Sensitivity | 84 dB (80 Hz – 20 kHz) half-space (mounted on a wall) |
| Maximum SPL | 106 dB peak (100 dB continuous, 2 hr) at 1m |
| Coverage Angle | 120°H x 120°V |
| Directivity Factor (Q) | 7.5 |
| Directivity Index (DI) | 8.8 dB |
| Nominal Impedance | 8Ω (at 8Ω tap setting) |
| Transformer Taps | 70V: 15 W, 7.5 W, 3.8 W, 1.9W 100V: 15 W, 7.5W, 3.8W |
| Driver | 75mm (3 in) full-range driver, polypropylene cone 20 mm (0.8 in) voice coil on Kapton™ voice coil former |
| Terminals | 4-pin Euroblock connector for bare wire, accepts 24 to 14 AWG gauge (0.25 to 2.5 sq. mm) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Black or white |
| Dimensions | 248mm wide x 230mm high x 100mm deep (9.8 x 9.1 x 3.9 in) |
| Net Weight | 1.9 kg (4.2 lbs) |
| Included Accessories | Wall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use. |
