Item is brand new in the box. Available for PRE-ORDER only.

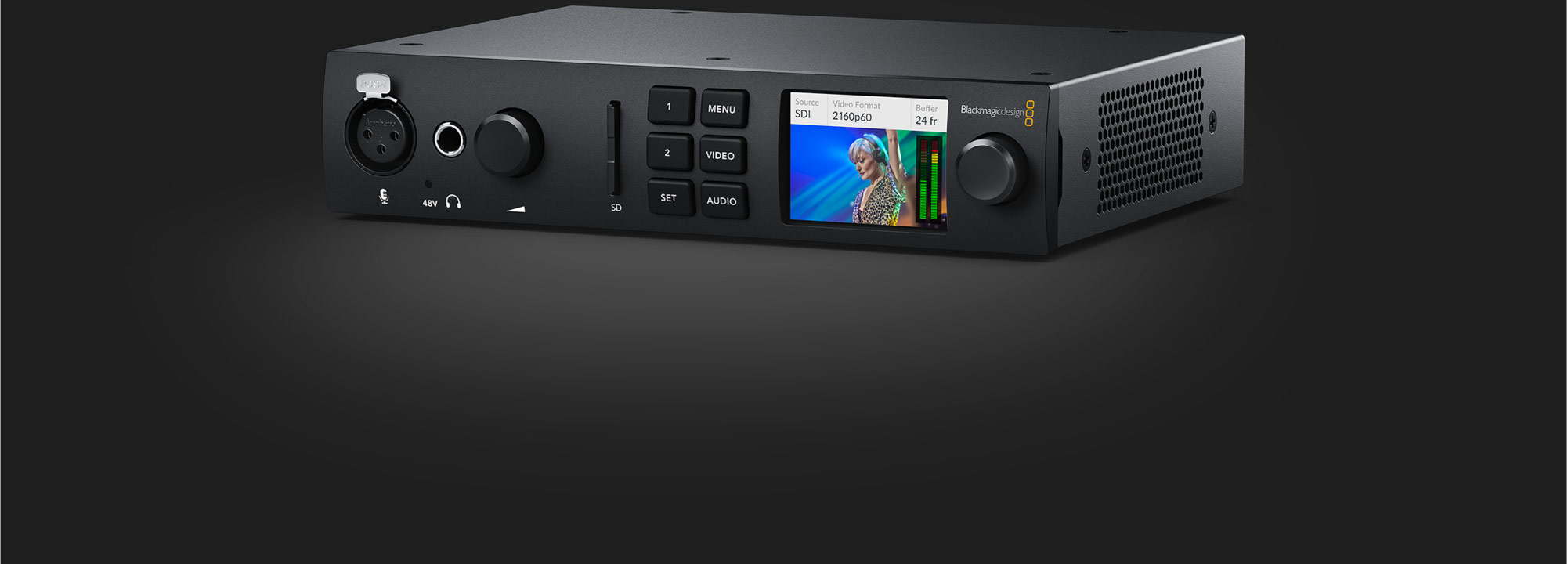

The new UltraStudio 4K Mini model is a portable Thunderbolt 3 capture and playback solution packed with the latest broadcast technology, including 12G‑SDI, HDMI 2.0 and analog connections. You get broadcast quality 8 and 10‑bit high dynamic range capture in all formats up to 4K DCI at 60p, and 12‑bit high dynamic range capture in all formats up to 4K DCI at 30p. The front panel features push button controls, an LCD for monitoring signal and setup, an XLR microphone input and a ¼" headphone jack. UltraStudio 4K Mini features USB for connecting a keyboard and mouse, plus it will trickle charge your laptop computer when connected to the Thunderbolt 3 port. There’s even a built in SD card reader allowing instant access to your camera media cards!

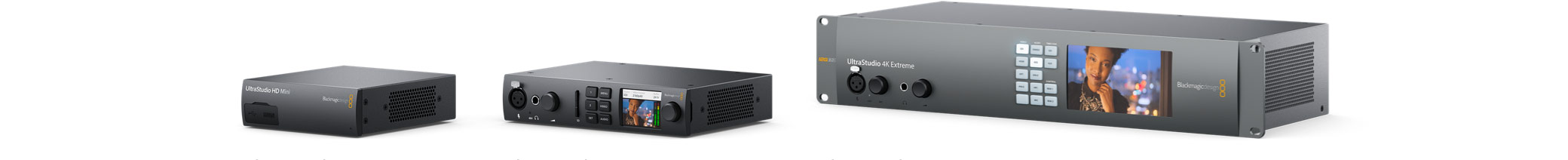

Built with blazingly fast Thunderbolt, UltraStudio lets you work with the highest quality video resolutions all the way up to Ultra HD and DCI 4K! Choose from a range of rack mount and portable UltraStudio for Thunderbolt models featuring SDI, HDMI and analog video connections. UltraStudio works with all your favorite video software such as DaVinci Resolve, Final Cut Pro, Avid Media Composer and Adobe Creative Suite. UltraStudio is QuickTime and WDM based and work with any Mac OS X and Windows video software!

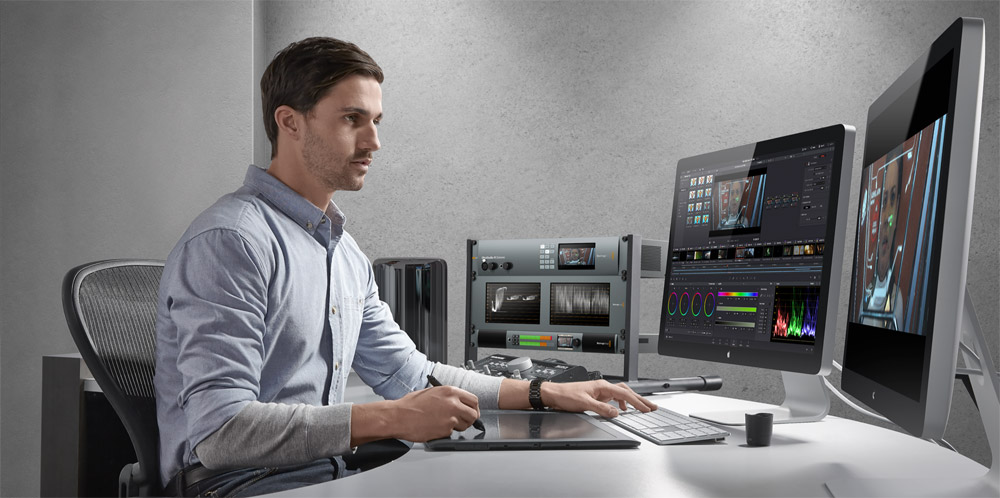

Whether you’re working on-set or in post production, UltraStudio gives you broadcast and digital cinema quality capture and playback that can be used for any workflow. UltraStudio is perfect for everything from editing, color and visual effects to live capture and on-set monitoring during production. There are even models with 12G-SDI and support for the latest HDR formats to ensure high end colorists get everything they need for monitoring to broadcast displays, HDR televisions or the latest digital cinema projectors. UltraStudio can even be used to feed SDI fill and key from RGB graphics directly from a computer to a live production switcher for amazing live broadcast graphics keying.
UltraStudio features a ‘breakout box’ style design that gives you virtually every connection you need to connect to professional decks, monitors and other equipment. That means they’re perfect for equipment racks or post production suites where you need to position them on a desktop or editing station. UltraStudio Mini models feature a more compact design thats more portable so it’s the perfect choice when you need to access video connectivity for live camera capture or on set color grading on location.

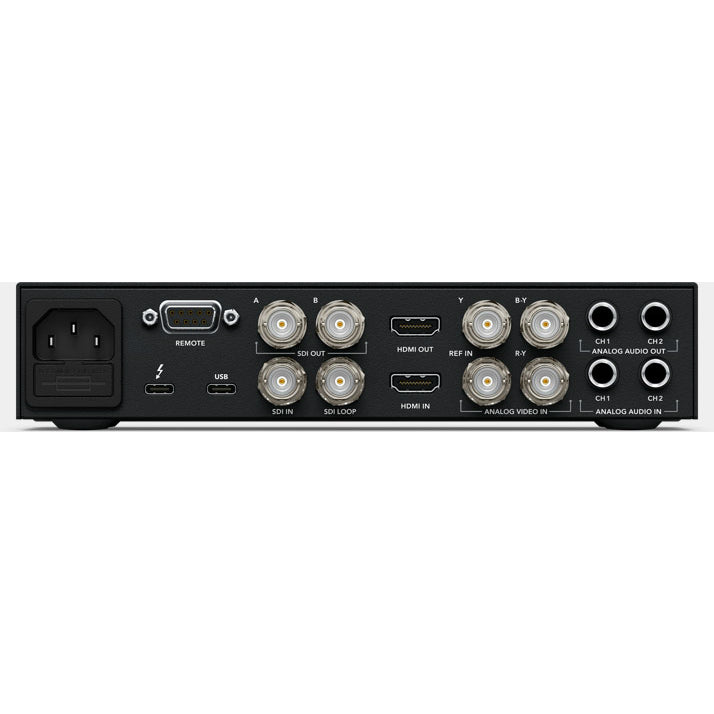

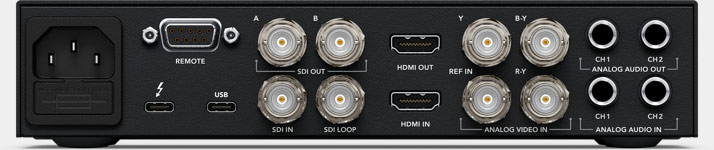

With UltraStudio you can connect to virtually any video device! All UltraStudio models include SDI in and out, HDMI out for monitoring on TVs and projectors and analog YUV/NTSC/PAL video and balanced analog input for archiving from legacy analog broadcast tape decks. Plus the dual SDI outputs can switch to fill and key! All models include video reference for sync playback to broadcast systems, plus RS-422 remote. The UltraStudio 4K Mini and Extreme models add an extra HDMI input plus a balanced analog audio out for connecting to in-studio audio monitoring.
UltraStudio 4K supports popular compressed video formats such as ProRes and DNxHD as well as 10-bit uncompressed video, so you’re not locked into a single file format. When working with uncompressed video all captured images are a perfect pixel‑for‑pixel clone of the source without any quality loss, so you have the confidence you’re working at the absolute highest quality possible. Get the sharpest keying with green screens, cleanest compositions, superior color correction and more! Ultra HD 4K has 4 times the resolution of1080HD for amazing looking images!

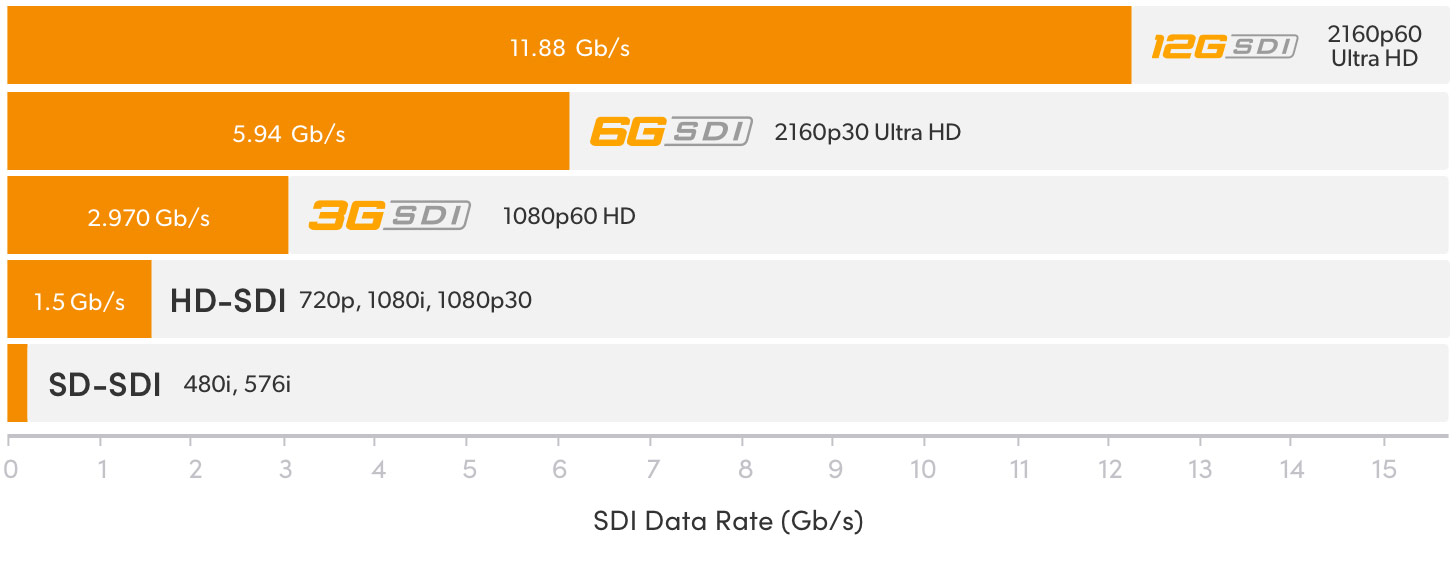

UltraStudio 4K Extreme 3 and UltraStudio 4K Mini feature the latest 12G‑SDI, for the most powerful video capture and playback solution! The incredible speed of 12G‑SDI means UltraStudio 4K models can support both capture and playback of Ultra HD and 4K 60p over a single BNC cable! Because 12G‑SDI connections are multi rate, you can still connect to all of your existing equipment. Only 12G‑SDI gives you the compatibility to connect to all your existing SD and HD equipment but also supports the future with all Ultra HD formats up to 2160p60. Because the 12G-SDI outputs are dual link, you can do stereoscopic or simultaneous fill and key in real time up to 2160p30!
