Teranex Mini SDI to HDMI 8K HDR is an advanced 8K monitoring solution for large screen televisions and video projectors. Unlike basic converters, Teranex Mini can use third party calibration probes to accurately align connected displays for precise color. There are 2 on‑screen scopes that can be selected between WFM, Parade, Vector and Histogram. Teranex Mini SDI to HDMI 8K HDR is perfect for filmstudios and broadcasters who need professional but affordable color accurate monitoring. You also get an elegant design with color LCD for monitoring and control of settings!

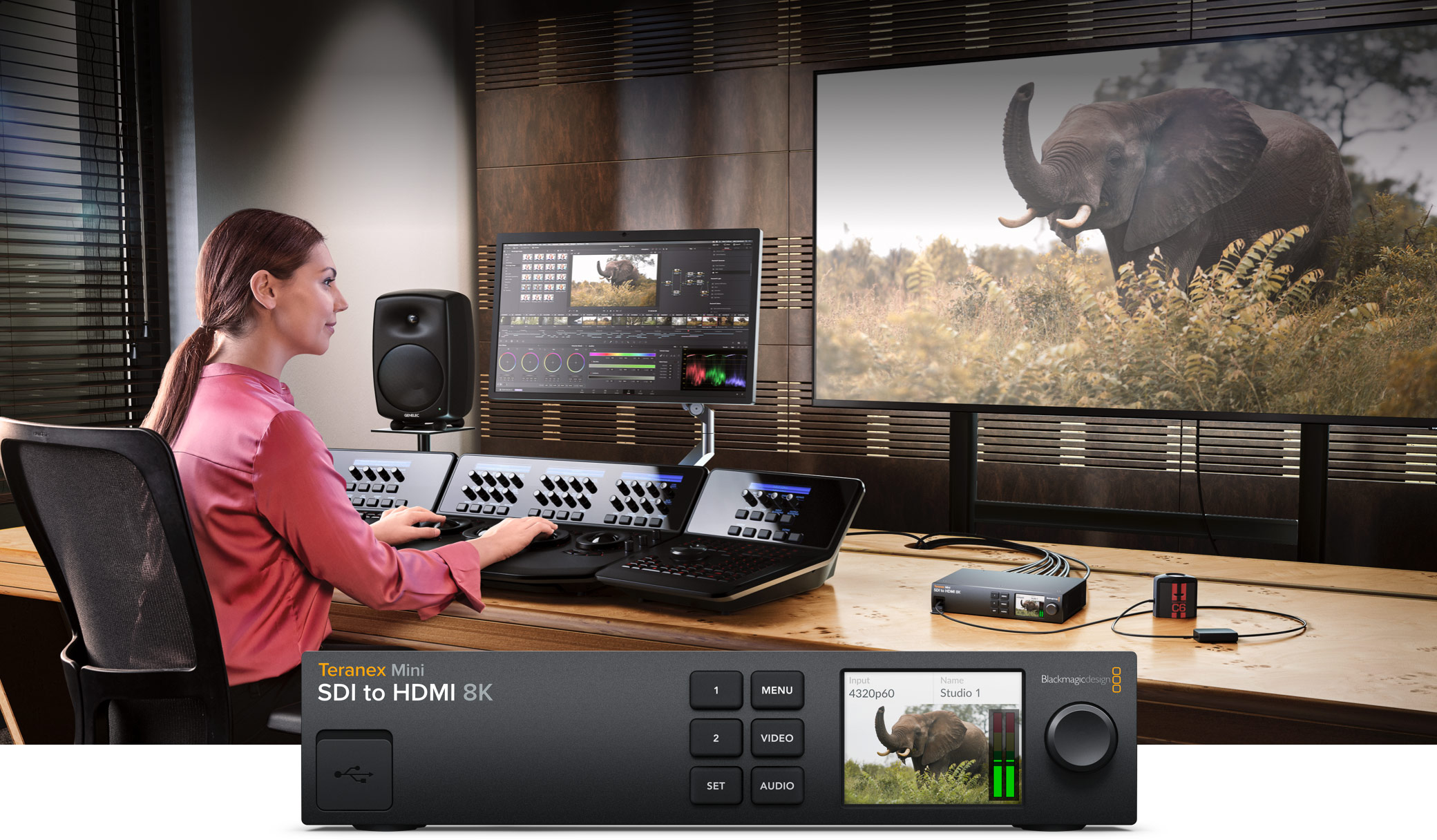

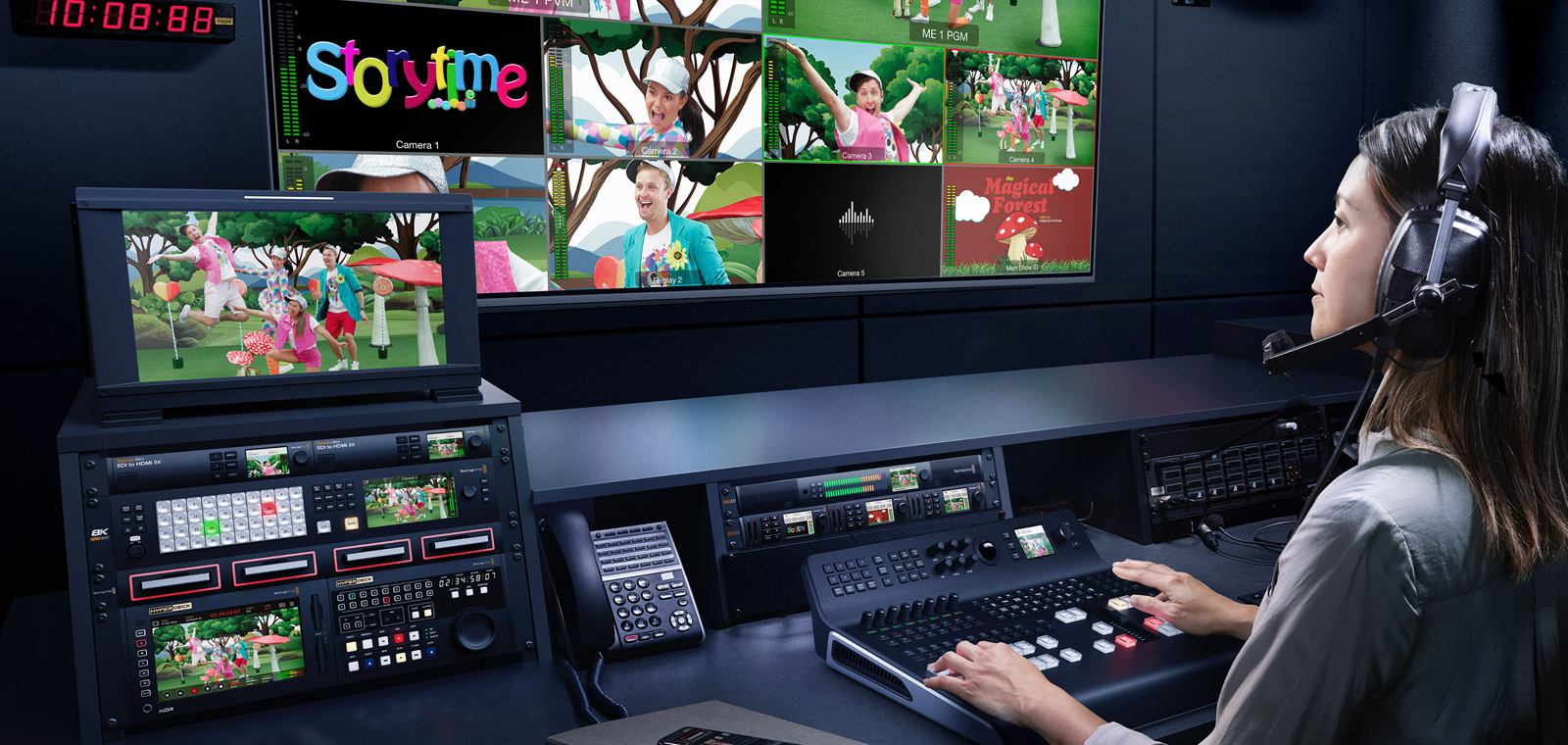

Teranex Mini SDI to HDMI 8K HDR has been designed for any broadcast, live production or feature film work where you need large color accurate SDI monitoring. Perfect for accurate grading monitoring for DaVinci Resolve, you can unload CPU and GPU processing, as Teranex Mini SDI to HDMI 8K HDR draws the 3D LUTs and scopes for you. That's important when using heavy 8K formats. Teranex Mini SDI to HDMI 8K HDR is also great when using large televisions for multi view on switchers such as ATEM Constellation 8K so each view is large enough to check focus. You can even use quad split to build large video walls from multiple monitors. Imagine building giant 8K video walls at concerts and theaters!

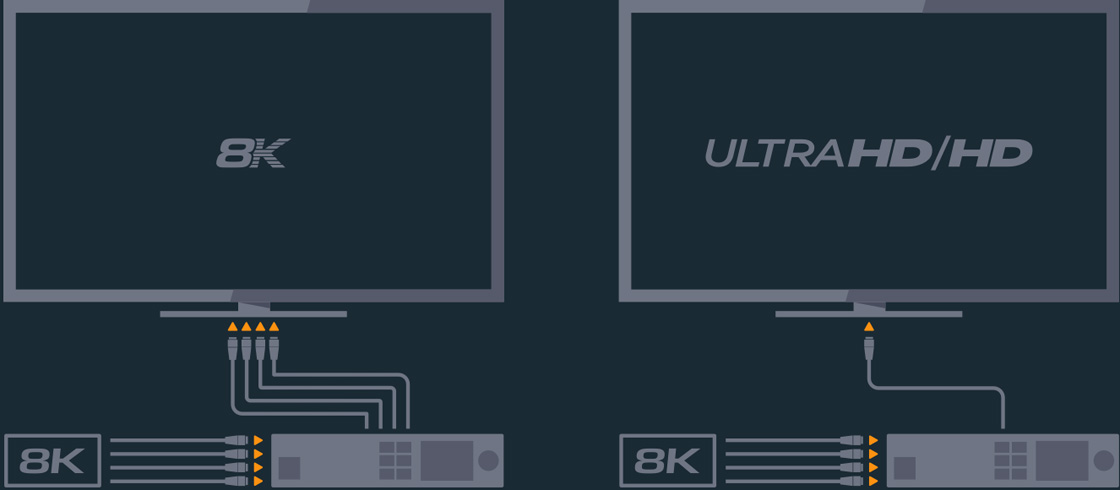

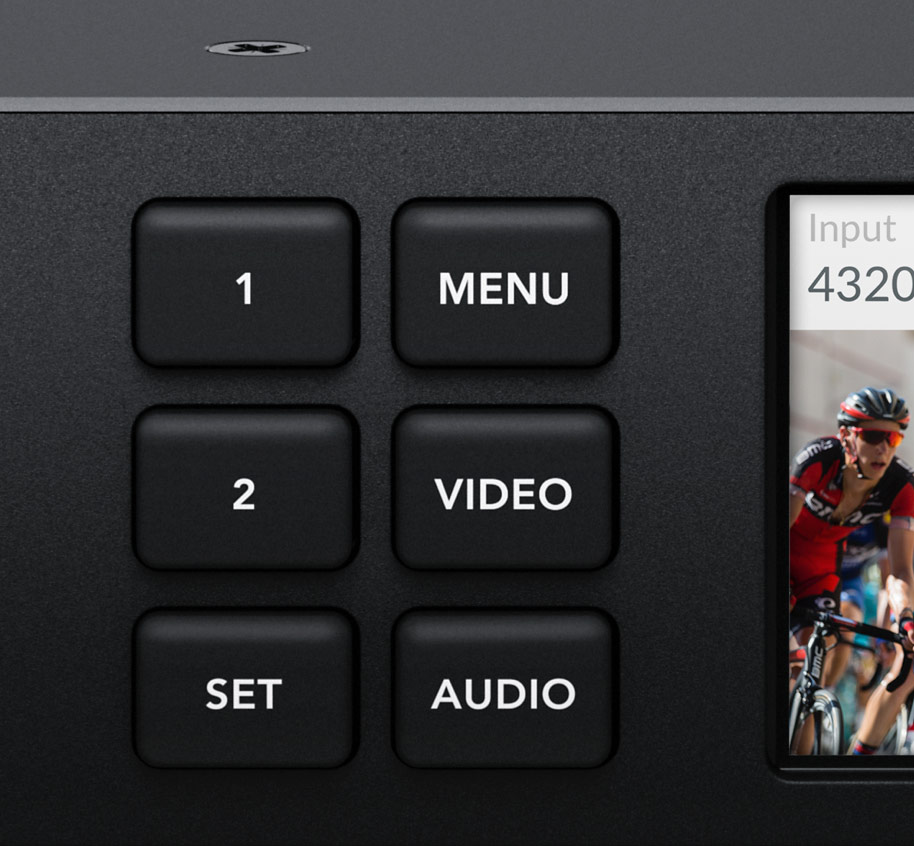

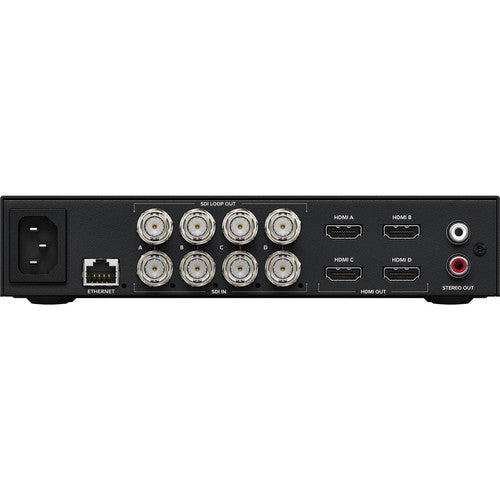

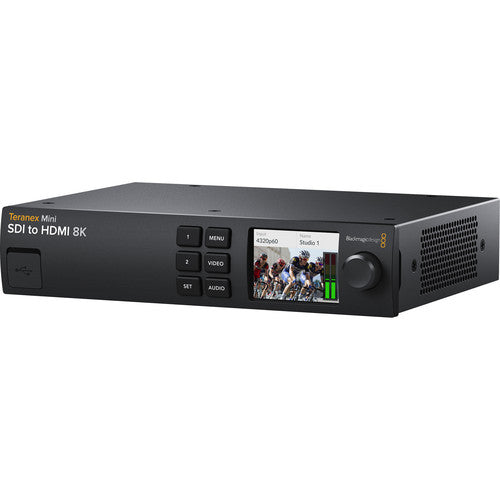

The innovative design is much better than regular converters as you can rack mount the converter if needed. The front panel feels elegant when placed on a desktop plus it includes buttons and a color display for video monitoring with audio meters and video standard. The rear panel has Quad Link 12G‑SDI for HD, Ultra HD as well as 8K formats. There are also 4 HDMI outputs allowing use with 8K televisions that feature quad HMDI inputs, plus a down converter for using 8K sources on Ultra HD or HD televisions. You can even convert between 2SI and Square Division all automatically! There's also AC power, analog audio HiFi out and a front panel USB connection for use with monitor calibration probes.
Teranex Mini SDI to HDMI 8K has everything for the latest HDR workflows. All that’s required is to connect a HDMI display to get HDR SDI monitoring. Static metadata PQ and Hybrid Log Gamma (HLG) formats in the VPID are handled according to the ST2108‑1, ST2084 and the ST425 standards. Teranex Mini SDI to HDMI 8K HDR handles ST425 which defines 2 new bits in the VPID to indicate transfer characteristic of SDR, HLG or PQ. Plus the ST2108‑1 standard defines how to transport HDR static or dynamic metadata over SDI. Plus there is support for ST2082‑10 for 12G SDI as well as ST425 for 3G‑SDI sources. Both Rec.2020 and Rec.709 colorspaces are supported and 100% of the DCI‑P3 format.
Teranex Mini SDI to HDMI 8K HDR includes the same high quality 33 point 3D LUTs as used in the film industry. 3D LUTs are perfect for recreating the look of old style film stocks, or they can be used to compensate for the colorimetry of the connected display. It's even possible to calibrate the connected display by connecting a third party USB color probe and Teranex Mini SDI to HDMI 8K HDR will analyze the monitor and generate a 3D LUT to correct for color differences between displays. Two independent 3D LUTs can be loaded and you can select between them from the front panel. Plus 3D LUTs use standard file formats so you can load LUTs generated by software such as DaVinci Resolve.

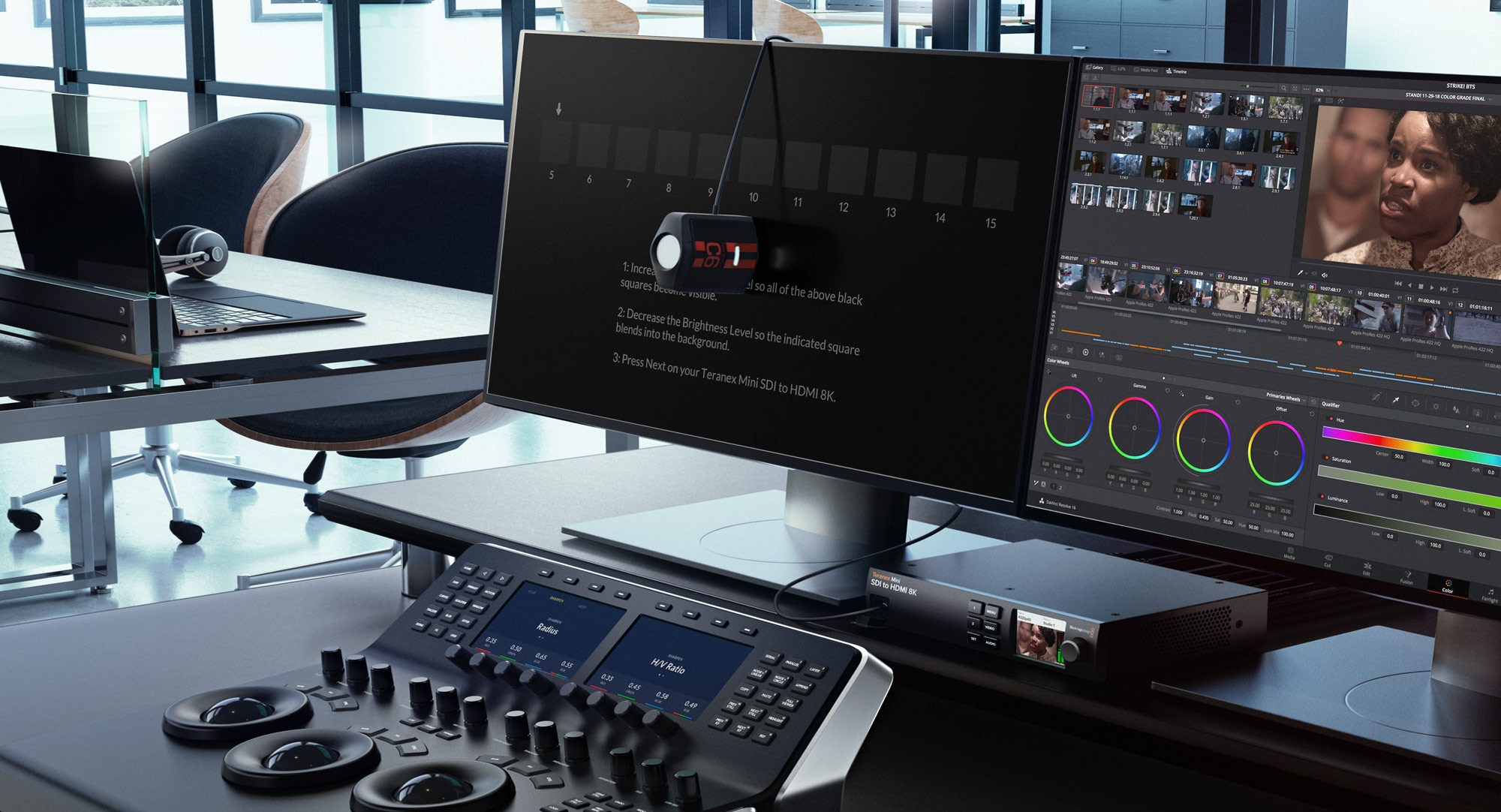

It’s always difficult to know if a monitor is the correct color because every display is slightly different, even between the same model! Teranex Mini SDI to HDMI 8K HDR solves this problem as it can use a third party USB probe for automatically aligning your monitor. SpectraCal C6, X‑Rite i1 Display Pro or the Klein K10‑A probes are supported and plug into the front of the converter! Simply start the process in the calibration menu and you'll get cues to set monitor brightness and contrast before the color calibration process commences. The converter takes care of all the work and will automatically generate test signals on the monitor during the calibration process!
All Quad Link 12G‑SDI inputs have outputs for looping to other equipment. Plus all HD, Ultra HD and 8K standards are supported allowing broadcast or film industry use. In 720p you get support for 50p, 59.94p up to 60p. In 1080i formats, you get 50i, 59.94i up to 60i. 1080p, 1080PsF as well as 2160p formats are supported from 23.98 to 60 fps.You even get support for 2K and 4K DCI film formats from 23.98p to 60p. 4320p 8K formats are supported at 23.98, 24, 25, 29.97, 50, up to 59.94. With 2SI to Square Division conversion built in, an 8K source will be automatically converted for the monitor. Teranex Mini SDI to HDMI even handles both Level A or B 3G‑SDI plus YUV and RGB SDI formats!

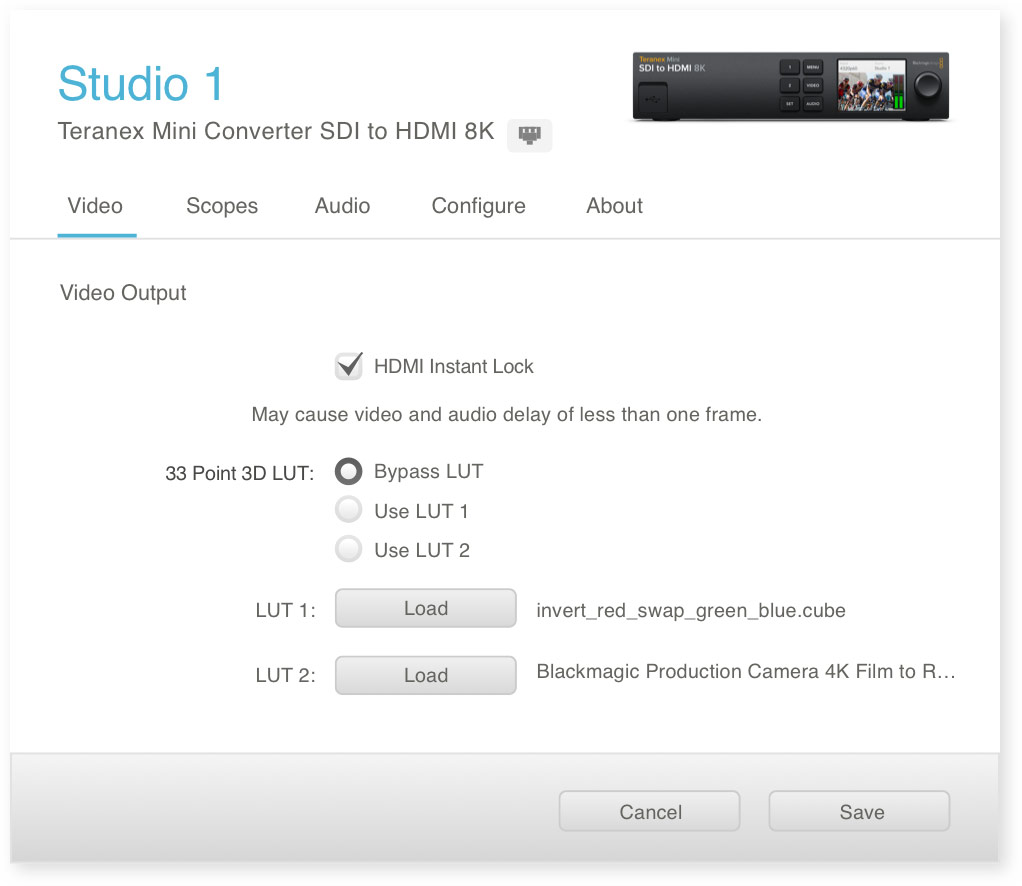

While changing settings via the on screen menus from the front of the converter is convenient, often you find the converter might be installed in a location that's difficult to access. In this case, Teranex Mini SDI to HDMI 8K HDR features Ethernet for remote access via the internet, or you can use the included software utility for Mac or Windows operating systems. This software even works via USB! The latest Teranex software utility can also update the converters software so you can upgrade to the latest video standards and features. You can even load and save LUTs remotely, as well as select and position the built in scopes.
8K is fantastic for digital signage as with a single clip you can drive a single 8K display, 4 separate Ultra HD displays or, via an extra converter, you can even drive 16 HD displays for an extremely exciting video wall display. DaVinci Resolve combined with DeckLink 8K Pro is extremely common in Hollywood film studios. Teranex Mini SDI to HDMI 8K HDR is the perfect solution to run large projectors and local color accurate displays. Teranex Mini SDI to HDMI 8K HDR is compatible with a wide range of televisions and monitors. However for the best color accuracy, monitors are the best option as they have stable image processing and won't shift color much after you have performed calibration.

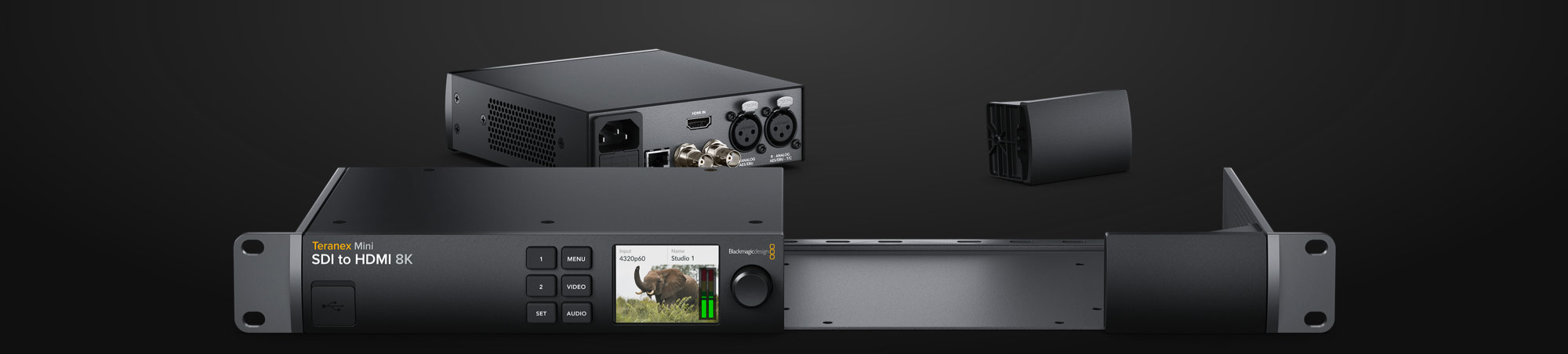

For rack mounting, simply add a Teranex Mini Rack Shelf. This consists of a metal tray that holds the converter and allows it to be screwed down before the whole shelf is bolted into the rack. The Teranex Mini Rack Shelf even includes some blank panel plates and these can be screwed into the shelf when you only want to mount a single converter but don't want to see an annoying hole in your installed gear! Of course Teranex Mini SDI to HDMI 8K HDR includes rubber feet that you can attach to the underside of the converter if you want to place it on a desktop.
