Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter
Blackmagic Studio Fiber Converter

Blackmagic Studio Fiber Converter

$4,545.00 SGD $0.00 SGD
Secure Payments
Free Shipping For Orders Above $100
Description

Work with remote cameras up to 2 km away from your studio or outside broadcast truck using SMPTE fiber. The Blackmagic Studio Fiber Converter converts SDI video, audio, and remote camera control connections into a single optical fiber cable, which connects to a Blackmagic Camera Fiber Converter attached to a remote camera. All video and data are transmitted using standard IP for extremely low latency broadcast quality video. You get 12G-SDI for an HD or Ultra HD camera feed and 3 independent HD return feeds, along with standard connections for camera control, PTZ, two dual channel talkback intercoms, tracker talkback, tally and a 5 inch LCD screen for monitoring camera and return feeds. The Blackmagic Studio Fiber Converter also provides power for your remote cameras and accessories.

Studio Converters

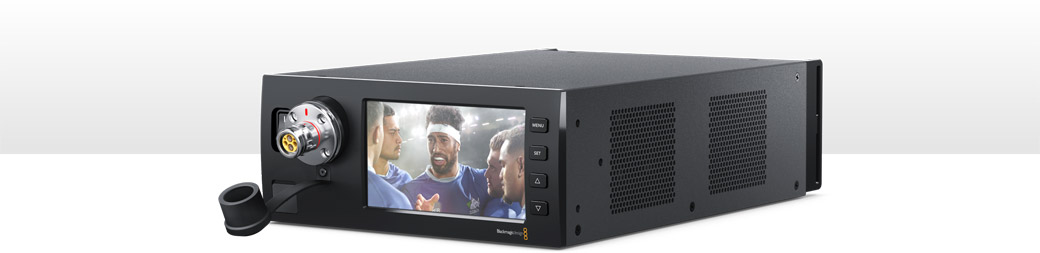

The Blackmagic Studio Fiber Converter is used at the other end of your broadcast camera chain back in the studio or outside broadcast truck. It converts signals from the remote camera back into standard television industry connections that can be used with your live production switchers, audio mixers and talkback interfaces. It features a high capacity power supply to drive the cable so it can provide enough power for your camera and any accessories that you might add. The studio fiber converter includes connections for tally, two dual channel intercoms for industry standard 3rd party talkback systems, and even a backup engineering talkback channel in case the fiber goes down. You get a main Ultra HD camera feed plus 3 independent HD return feeds with full remote camera control, PTZ, tracker talkback and ethernet, all through a single SMPTE fiber cable. Plus, there is a large 5 inch LCD screen right next to the SMPTE fiber connection on the front panel for monitoring signals from the remote camera. This allows for easy patching and verification of the remote camera function!


Studio Converters

Blackmagic Fiber Converters

Extend and fully power cameras up to 2 km away using an open standard SMPTE fiber cable!

The Blackmagic Camera Fiber Converter and Blackmagic Studio Fiber Converter convert standard television industry connections for video, audio, power, talkback, and tally into a single SMPTE fiber optic cable. This allows cameras to be placed up to 2 km away from a studio or outside broadcast truck using a single convenient and incredibly durable cable. The Blackmagic Camera Fiber Converter also adds familiar broadcast studio camera controls to the rear of the camera, plus additional connections so you can use it with the talkback systems and switchers you already have. The Blackmagic fiber converters feature 12G-SDI and are designed to work with all HD and Ultra HD formats up to 2160p60. Now you can transform professional cameras such as URSA Broadcast and URSA Mini into a complete professional studio camera with all of the features you need for high end work!


Studio Converters

Place Cameras Anywhere

Get cameras much closer to the action!

If you’re working in a studio or out at a large sporting venue, you often need to place cameras far apart. While SDI connections are common, the limited range of SDI makes it hard to use it over long distances. Traditionally, you would need to run multiple cables and expensive extenders for power, talkback, tally, video and audio. This makes set up incredibly complex and increases the chances of a technical problem. Now you can solve this problem by converting all essential connections and power into a single convenient SMPTE fiber cable that can run incredibly long distances. That means cameras can be placed anywhere and connected back to broadcast trucks parked outside of a venue or back to a central control room in a studio. Best of all, SMPTE fiber is a global broadcast industry standard so you can use cables and connection points that are commonly available. Blackmagic fiber converters are also affordable, so traditional broadcasters, new web broadcasters, AV producers, houses of worship and educators can all use the same high end broadcast technology!


Studio Converters

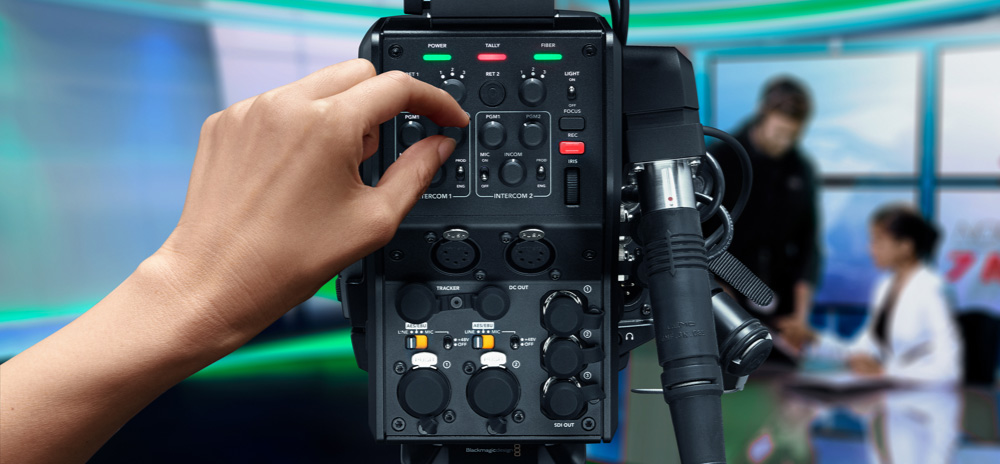

Add Studio Camera Controls

Transform broadcast cameras into dedicated studio cameras!

Studio cameras are typically operated from the rear of the camera, but broadcast cameras usually have controls on the side of the camera. To solve this problem, the Blackmagic Camera Fiber Converter adds support for SMPTE fiber to your camera along with a wide range of controls and features to the rear of the camera, transforming it into a professional studio camera. You get 2 separate broadcast standard 5 pin talkback connections, 3 return video feeds, 2 extra audio inputs, connections for PTZ and trackers, plus additional DC and D-tap outputs for powering accessories. With all these extra controls added to the rear of the camera, you can operate the camera in the same way as traditional studio cameras!


Studio Converters

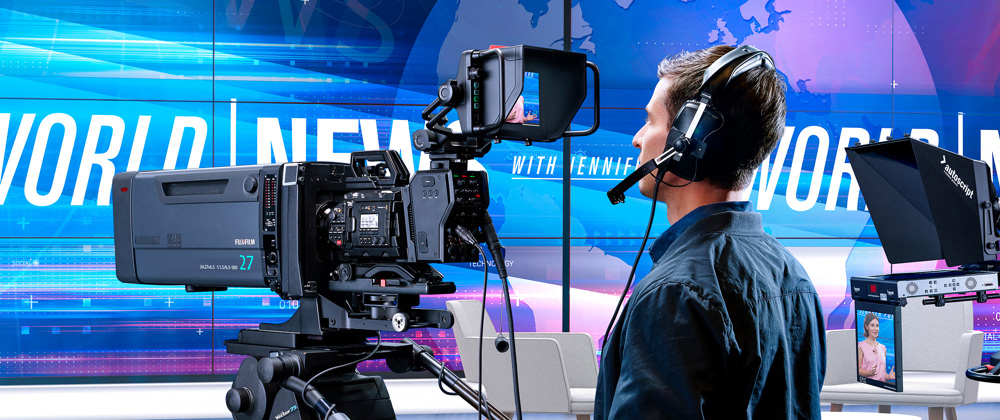

Dual Channel Talkback

Two dual channel talkback intercoms with backup!

The Blackmagic Camera Fiber Converter and Blackmagic Studio Fiber Converter provide 2 dual channel digital talkback connections that are compatible with professional 5 pin XLR talkback headsets. The camera converter even has convenient controls for mixing in program return audio with your talkback headset so you can adjust the volume as needed while talking to the rest of the crew. The talkback intercoms can be used for both production and engineering. In addition, there is a backup channel available for troubleshooting in case the fiber link is down. This backup talkback channel automatically switches over and uses the data pair in the SMPTE cable if the fiber is not working. The Blackmagic Camera Fiber Converter also includes a standard 10 pin connection for tracker talkback, which is perfect when both headset connections are in use and you need to feed an additional talkback connection through to your crane operator.


Blackmagic Camera Fiber Converter

Studio Converters

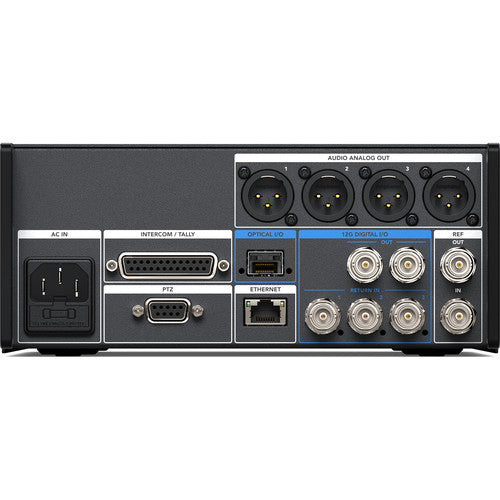

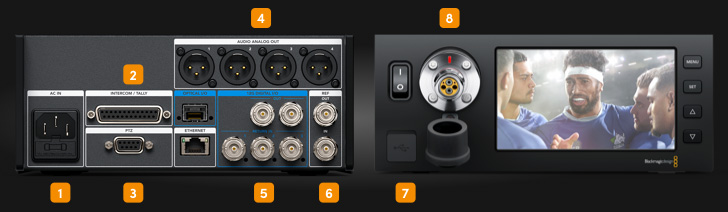

1. Power ConnectorConnect an IEC power cable to the power input on the rear panel to provide power.

2. Intercom / TallyThe 25 pin intercom and tally connectionallows you to connect to third party intercom and tally systems or extend your existingATEM converters to other analog devices.

3. PTZThe 9 pin D-Sub connector allows you to connect PTZ controllers to the Blackmagic Studio Fiber Converter for remote control pass through to the Blackmagic
Camera Fiber Converter for PTZ heads via the Visca protocol.

4. Analog Audio OutFour XLR audio outputs allows you to output the audio plugged into inputs 1 and 2 from your camera, and the two XLR audio inputs on the Blackmagic Camera Fiber Converter.

5. 12G SDI In and OutTwo 12G-SDI outputs connect the output from the camera to the switcher and also another destination such as HyperDeck Studio for ISO recording.

6. Ref In/OutThe Ref In connection sends traditional reference timing from other broadcast devices to your camera, and Ref Out acts as a loop output.

7. USB-C ConnectorThe USB-C port allows you to update internal software.

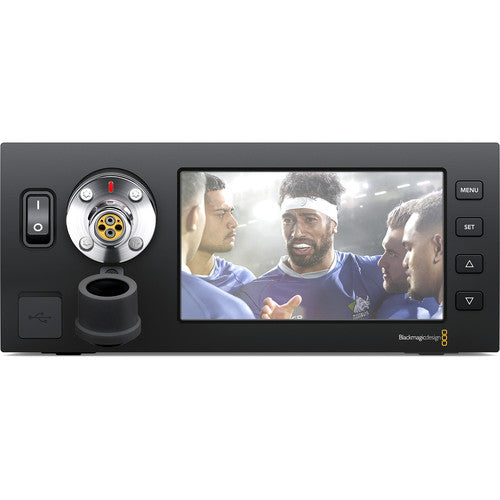

8. SMPTE Hybrid Fiber Optic ConnectorUse the Blackmagic Studio Fiber Converter’s female connector to plug in the male end of a SMPTE Fiber cable.


Designed for High End Broadcast

Durable metal design, high end components and professional connections

The Blackmagic Camera Fiber Converter features an extremely durable all metal design that perfectly matches URSA Broadcast, URSA Mini cameras or any camera that supports a standard battery plate. It’s built to withstand the harsh demands of outdoor field production and 24/7 operation. The Blackmagic Camera Fiber Converter features full size standard television industry connections with dust caps, along with an integrated VLock mount plate on top for adding a studio viewfinder. The Blackmagic Studio Fiber Converter is designed so that you can fit two of them side by side in a standard equipment rack using the optional rack mount kit. The optical fiber connector on the Blackmagic Studio Fiber Converter is conveniently located on the front panel, right next to the built in 5 inch LCD, so you can plug remote cameras in and instantly see the feed!
