Blackmagic Media Player, a new capture and playback solution for Thunderbolt computers with dual 12G-SDI outputs for fill and key playback, 12G-SDI capture and 10G Ethernet that lets customers use DaVinci Resolve 19 as a media player and replay solution for the live production and broadcast markets.
$1,375.00 SGD $0.00 SGD
Secure Payments
Free Shipping For Orders Above $100
Description

Blackmagic Media Player


Now you can use DaVinci Resolve 19 as a media player and replay solution!

Blackmagic Media Player is a capture and playback solution for Thunderbolt computers that's specifically designed for playout to live production switchers or large broadcast systems. However it does much more than just video in and out because you also get 10G Ethernet and power to your computer! You get dual 12G-SDI outputs for fill and key playback, 12G-SDI capture, and 10G Ethernet for accessing network storage and laptop power over a single Thunderbolt connection! There is also an independent Thunderbolt connection on the front so you can simply walk up and plug in your laptop! It also supports full DeckLink API features so most video software will just work!

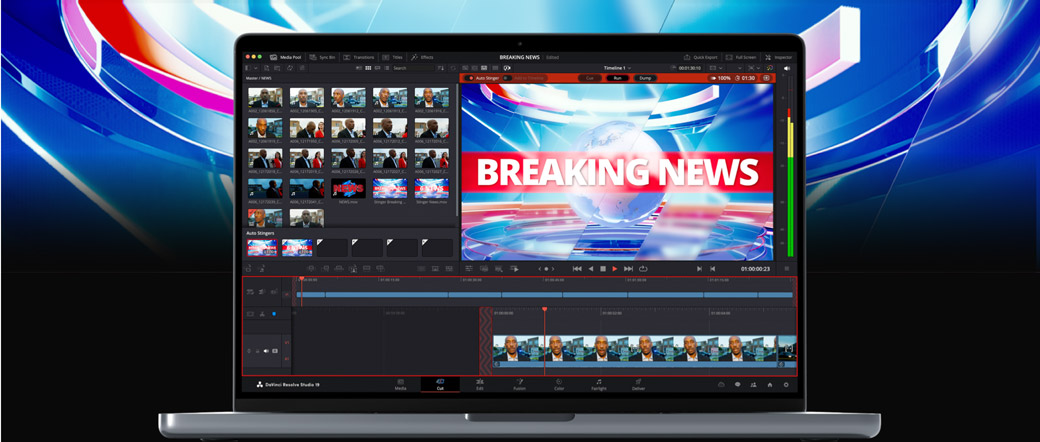

Get News Editing and Replay in DaVinci Resolve 19!

Get News Editing and Replay in DaVinci Resolve 19!

The DaVinci Resolve 19 cut page has exciting new media player, editing and replay features. DaVinci Resolve handles common video file formats, so you can play any files your client gives you! For broadcast graphics, DaVinci Resolve 19 can play video files that have an alpha channel, and they will be output as a 10-bit SDI fill and key. Plus the new multi source viewer allows visual media browsing, then any clips that match in time will be displayed in a multiview. New "on air" controls allow the key output to enable the downstream keyer in a switcher, so a single button can automate the playout to air. DaVinci can even add an automatic stinger! It's the perfect solution for news and replay!

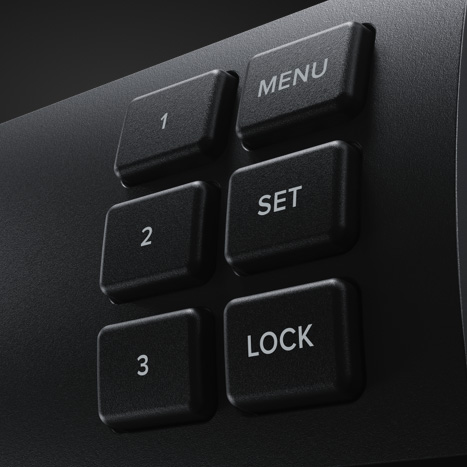

Elegant Design with Broadcast Features

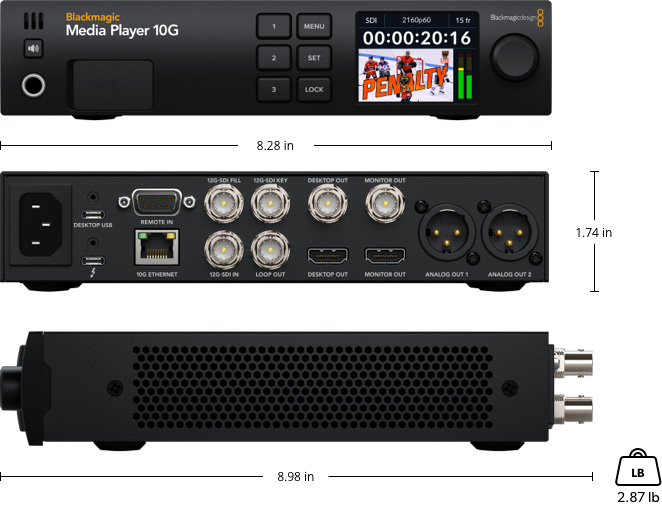

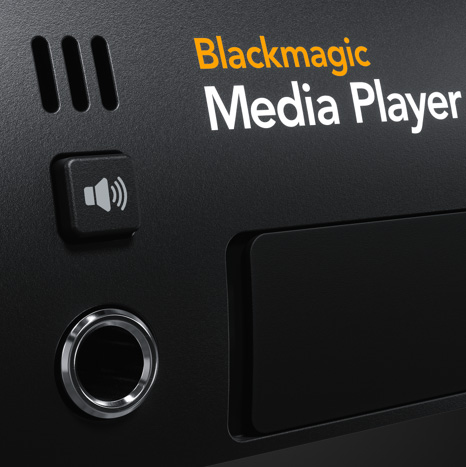

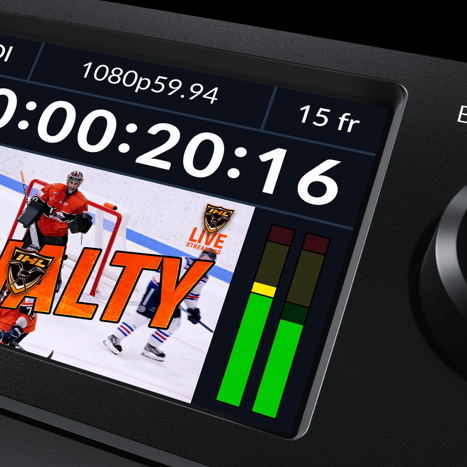

Blackmagic Media Player includes everything you need for broadcast playback! Place it on the desktop or it can be rack mounted using a Blackmagic Universal Rack Shelf. The front panel has an LCD with video, audio meter status information that includes input, video standard and the depth of the record/playback frame buffer. The audio meter can also be changed between VU and PPM. There's also a headphone socket, speaker and a speaker enable button! To lock the speaker on, just double press the speaker enable button! If Blackmagic Media Player is mounted in a control room, then the front Thunderbolt connection lets you walk up and plug your computer right into the front of the rack!

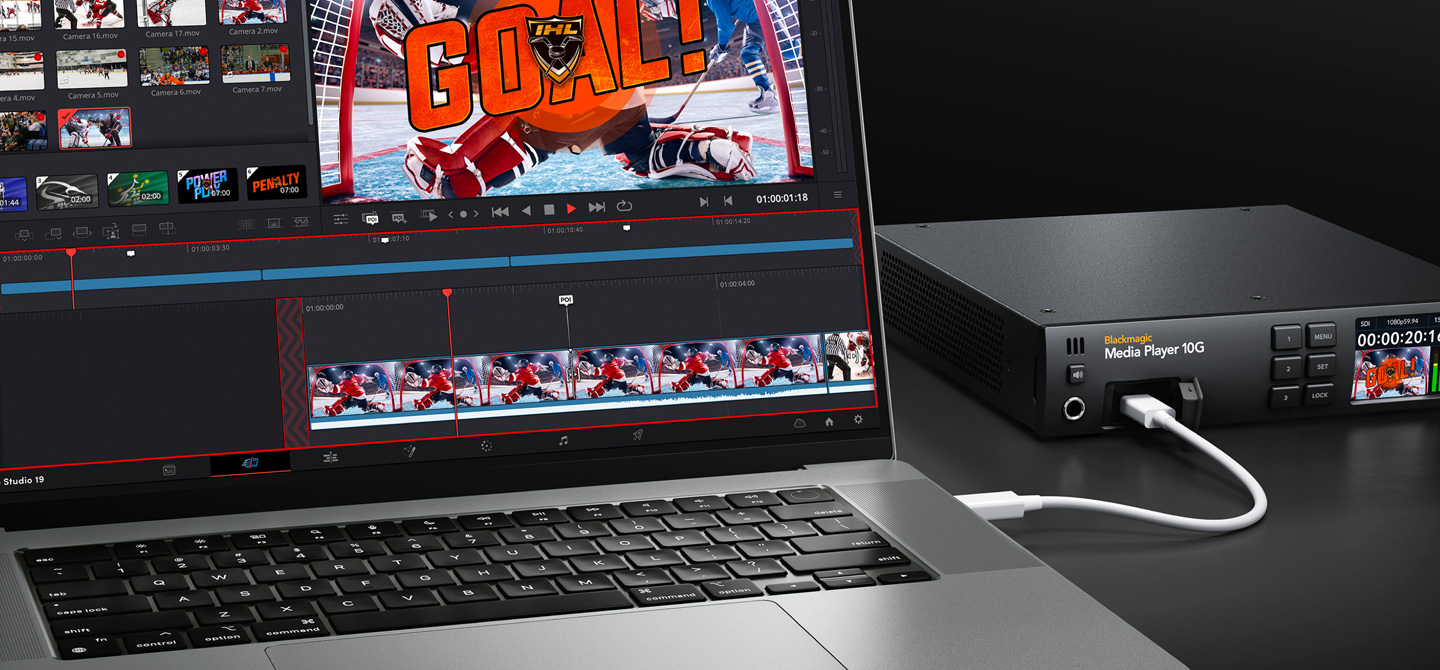

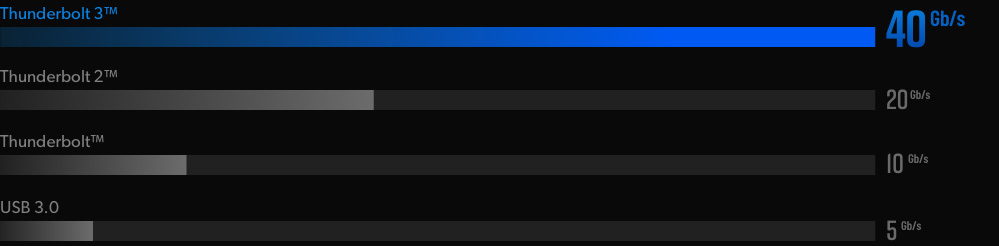

Extremely Fast Thunderbolt Connection

Extremely Fast Thunderbolt Connection

Blackmagic Media Player includes fast Thunderbolt with video capture and playback, as well as 10G Ethernet and laptop power all over a single cable! There are Thunderbolt connections on both the front and rear panels, so you can connect either rack mount or laptop computers. With Thunderbolt, you get lots of speed to handle large 4:4:4:4 and 4:2:2:4 files with alpha channels, in all SD, HD and Ultra HD video standards up to 2160p60. Blackmagic Media Player uses the DeckLink API, so almost all video software works. Plus the Thunderbolt link is bidirectional, so you can capture, process and output video in real time! Now you can use computers as a graphics processing engine!

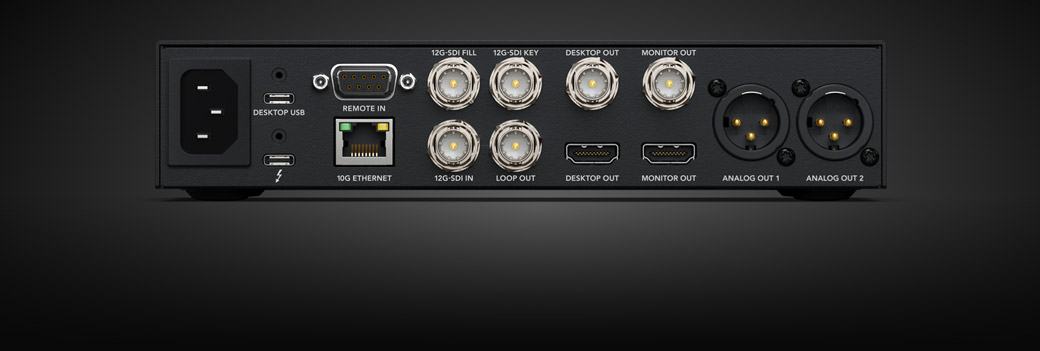

Connections for Replay, Monitoring and Extended Desktop

Connections for Replay, Monitoring and Extended Desktop

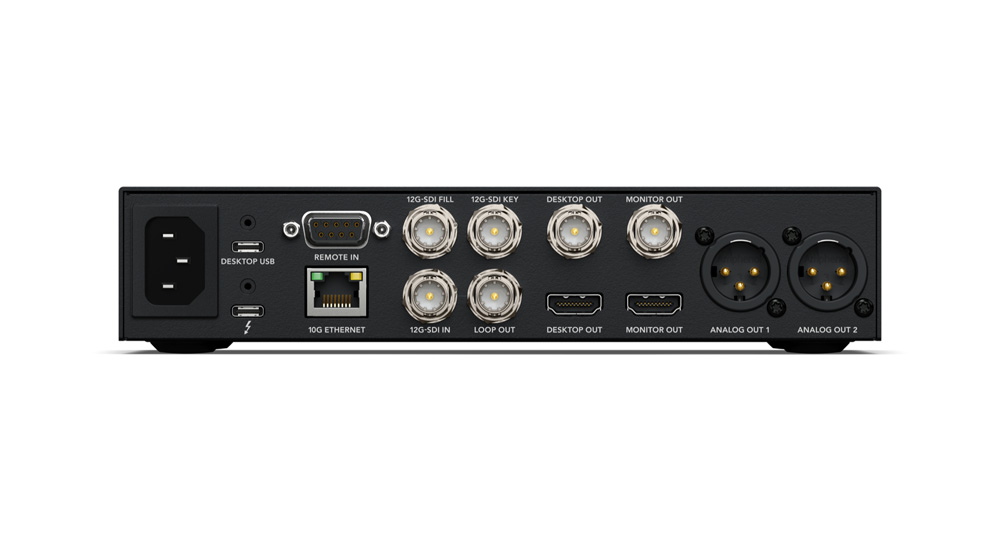

The Blackmagic Media Player has lots of connections for monitoring, extended desktop and fast networking. All with a single Thunderbolt connection! The program fill and key outputs can be muted so video won't key on a switcher until the replay has started. Then the dedicated 12G-SDI and HDMI monitoring outputs are always active so you can setup the next replay. There's even balanced audio out for powered speakers. 12G-SDI video in allows live input monitoring of the switcher multiview for replay. Plus the 10G Ethernet provides fast assess to shared storage for accessing ISO video files. There's even an extended desktop for the DaVinci UI. Plus a USB expansion for a keyboard and mouse.


Supports Independent Fill and Key Outputs

Supports Independent Fill and Key Outputs

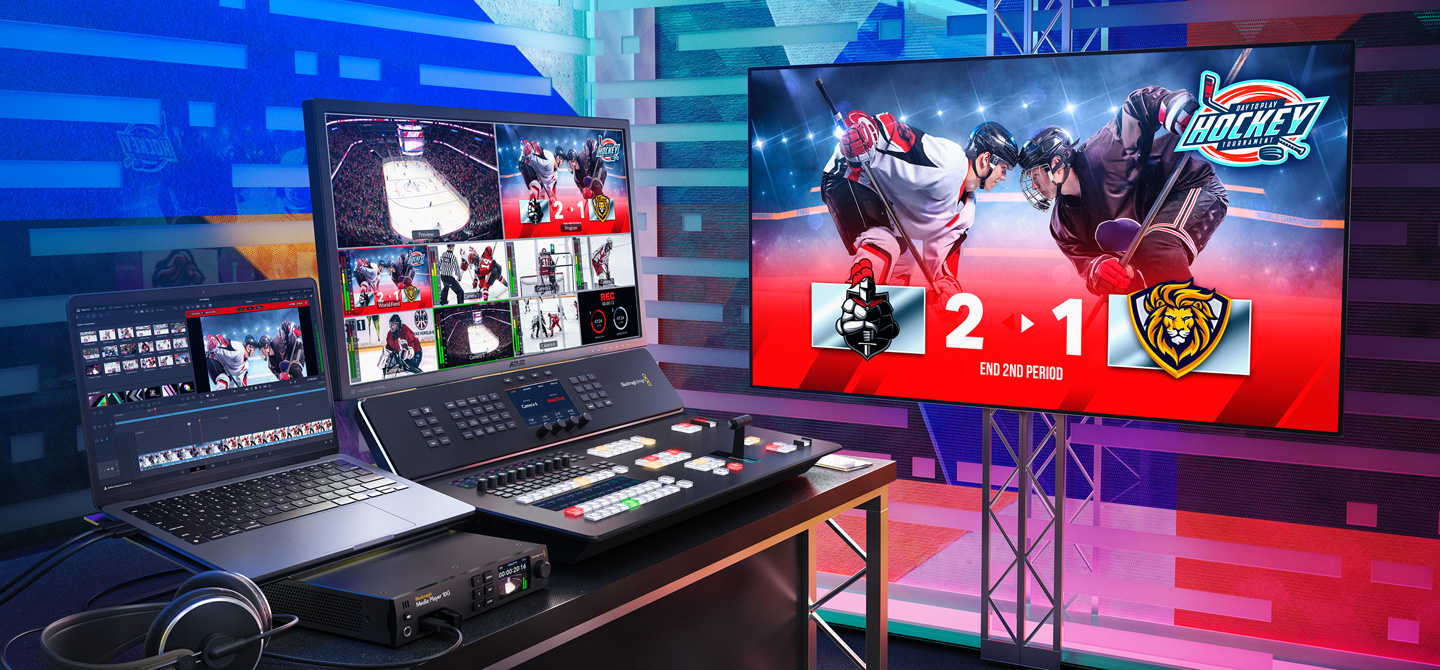

With dual 12G-SDI video outputs, Blackmagic Media Player can connect into live production switchers so broadcast graphics can be overlaid with transparency. Internally, there's hardware support for both RGBA and YUVA frame buffers. With RGBA graphics, the Blackmagic Media Player will automatically transcode the RGB pixels to 10-bit YUV on the fill output and the alpha channel to the 10-bit key output. The two SDI outputs are then connected to a live production switcher where they can be keyed over video. The key output ensures you get smooth blending of the transparent elements in the images. This all means that Blackmagic Media Player is ideal for broadcast graphics and stingers!


Fill

Key

Background

Program Out

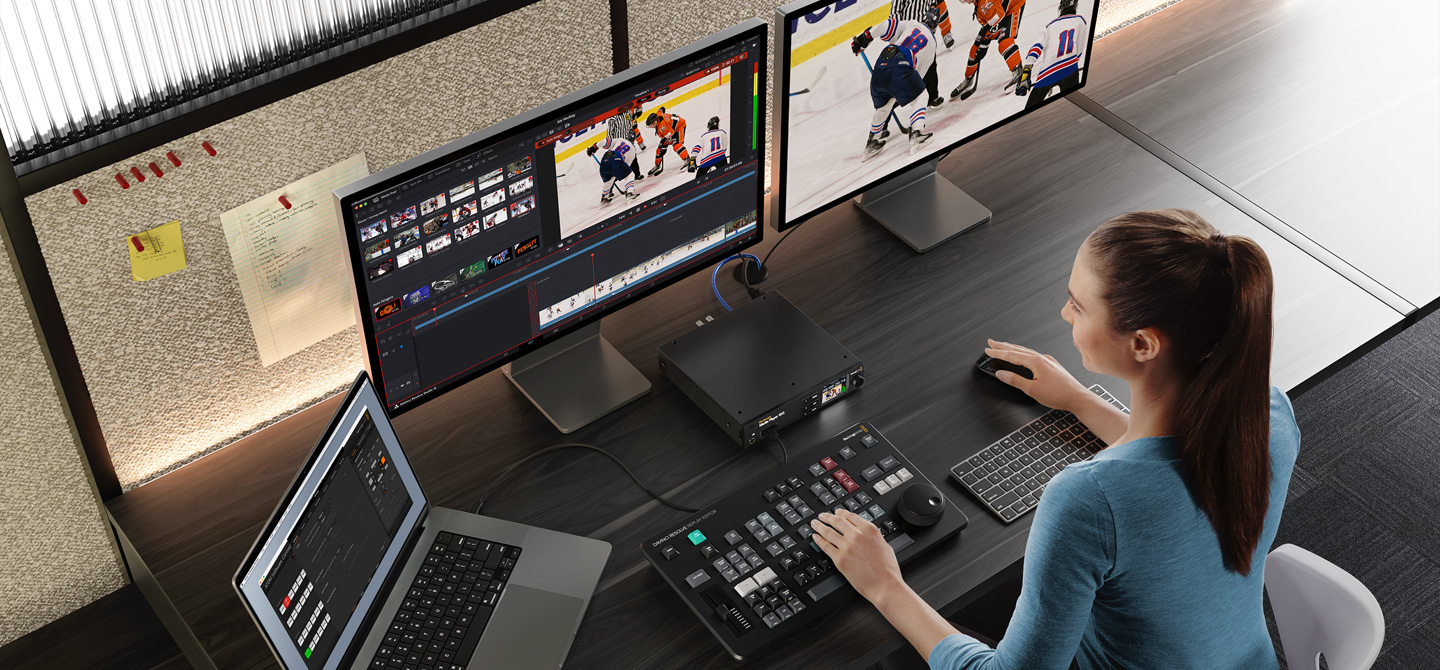

Simultaneous Capture and Playback!

Simultaneous Capture and Playback!

Blackmagic Media Player uses the same Desktop Video software that's used in our popular DeckLink and UltraStudio capture and playback solutions. This driver supports simultaneous real time bidirectional transfer of video data to and from the computer. Plus the latency is extremely low. What this means is you can capture image data into the computer from the SDI input, while at the same time, send image data from the computer to the SDI outputs. This lets you create some amazing solutions where the computer is a processing engine. Imagine using the computer as a keyer, or generating broadcast graphics over the live input! Or even exciting new AI based processing overlaid on live video!


High Speed Ethernet for Network Storage Access

High Speed Ethernet for Network Storage Access

The high speed 10G Ethernet port means that the Blackmagic Media Player gives you access to network storage when your computer is connected to the Thunderbolt port. This means you don't need extra Ethernet adapters as you get video and network with a single cable. 10G Ethernet is 10 times faster than regular Ethernet so you get enough speed for lots of video streams, common when doing replay work. The 10G Ethernet port also features very low latency for fast access times. Plus Blackmagic Cloud Stores have 10G Ethernet, which means you get the speed to access shared media and ISO recordings so you can have multiple editors all working together in DaVinci Resolve.

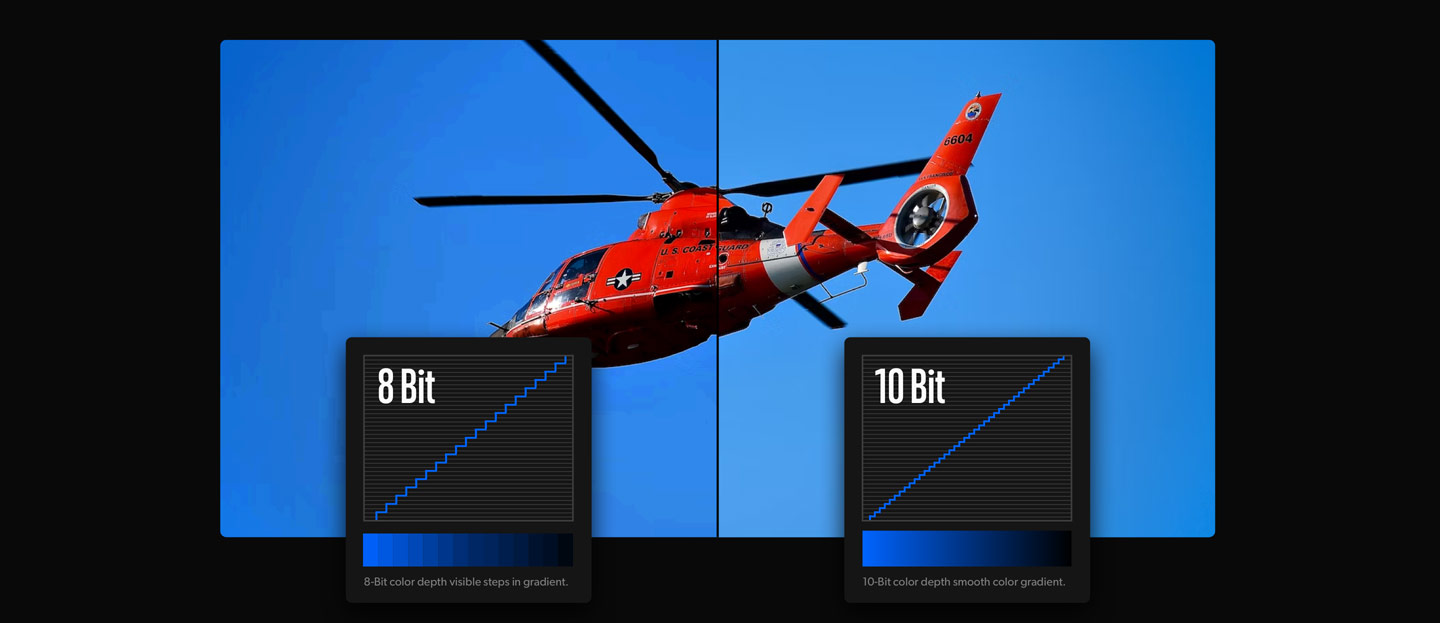

Get True 10-Bit Broadcast Video Quality

Get True 10‑Bit Broadcast Video Quality

Blackmagic Media Player is designed to support the highest quality video. You get support for capture and playback to popular video formats such as Apple ProRes, DNxHD or even 10-bit uncompressed, so you’re never locked into a single file format. 10-bit is the most commonly used television standard as colors can be represented with 4 times the precision of 8-bit video. Only working with 10-bit uncompressed video will ensure all images are a perfect pixel for pixel clone of the original source, so you’re always working at the absolute highest quality possible. This means you get the sharpest green screen keying, seamless VFX compositions and superior color correction!


Works With All Popular Video Software

Works With All Popular Video Software

With support for all popular video software, the Blackmagic Media Player gives you the freedom to work with the tools you already know and love! Blackmagic Media Player is perfect for using DaVinci Resolve for broadcast editing and color correction work. Because Blackmagic Media Player supports capture and playback at the same time, you can even use the live grading feature in DaVinci Resolve to capture video, apply color correction and then output it all at the same time! Blackmagic Media Player also works with other editing software including Final Cut Pro, Media Composer, Premiere Pro and more! You can even create stunning visual effects with Fusion, After Effects and Photoshop!

DaVinci Resolve

DaVinci Resolve

Fusion

Fusion

Final Cut Pro

Final Cut Pro

Adobe Premiere

Adobe
Premiere

Adobe After Effects

Adobe
After Effects

Avid Media Composer

Avid Media
Composer


Use Powerful Broadcast Graphics Tools

Use Powerful Broadcast Graphics Tools

When creating broadcast graphics and titles, you will want to use the same tools graphic designers are already familiar with, so you get the most creativity, with no retraining required. Blackmagic Media Player works with Fusion, which is the visual effects software integrated into DaVinci Resolve, as well as Adobe After Effects and Photoshop. Fusion Studio is a powerful node based compositing VFX tool with 2D and 3D environments, hundreds of effects and more. Plus you can download and use Fusion free of charge in DaVinci Resolve! You can use the included Blackmagic Media Express software to capture and play back video into files that can be loaded into Fusion, After Effects or Photoshop.


Use Powerful Broadcast Graphics Tools

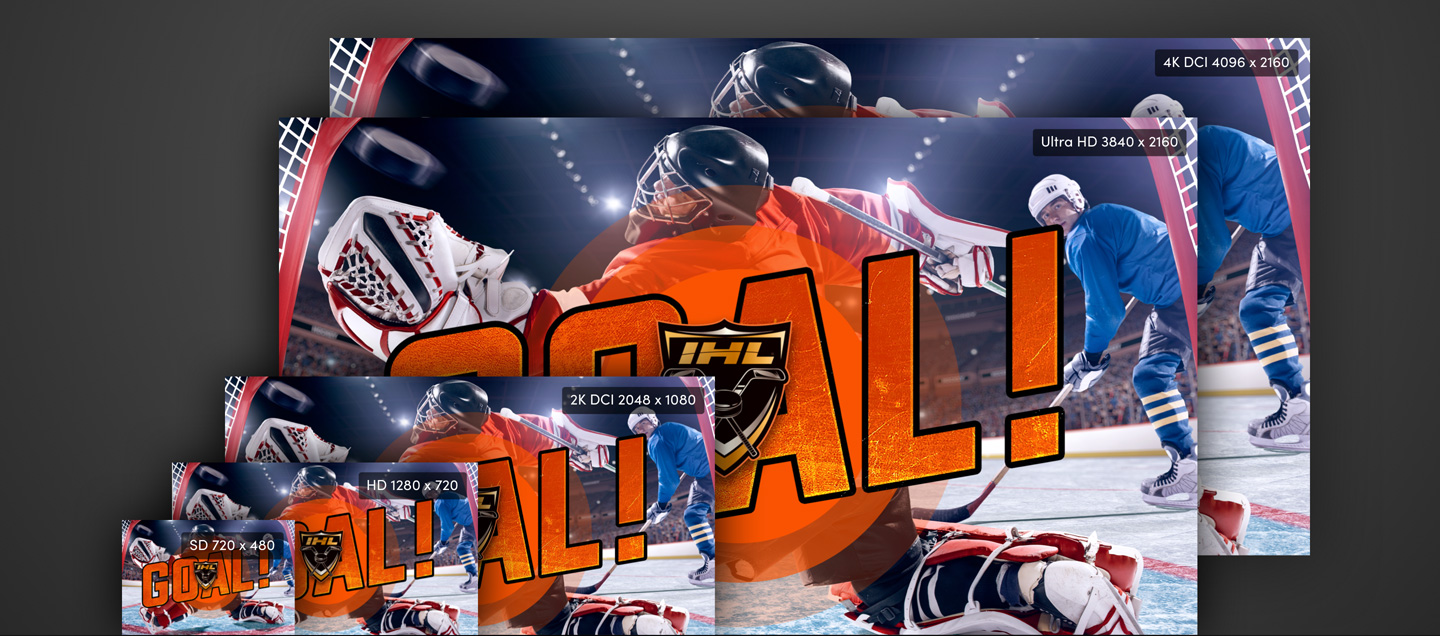

Supports Ultra HD and 4K DCI Film

Blackmagic Media Player supports the latest Ultra HD video standards on it’s 12G-SDI video connections. Ultra HD video standards include 2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p47.95, 2160p48, 2160p50, 2160p59.94 and 2160p60. You even get 4K film standards, which include 4Kp23.98 DCI, 4Kp24 DCI, 4Kp25 DCI, 4Kp29.97 DCI, 4Kp30 DCI, 4Kp47.95 DCI, 4Kp48 DCI, 4Kp50 DCI, 4Kp59.94 DCI and 4Kp60 DCI, 4KPsF25 DCI, 4KPsF29.97 DCI and 4KPsF30 DCI. This means Blackmagic Media Player is the ideal solution for broadcasters, because it allows you to migrate to Ultra HD and 4K work now! Plus Blackmagic Media Player can be software updated to add new television standards later!

Supports SD, HD and 2K DCI Film

Even though Blackmagic Media Player has 12G-SDI connections, they are multi-rate and support lower resolution SD for archive or HD for broadcast video use. These include 525i59.94 NTSC, 625i50 PAL, 720p50, 720p59.94, 720p60, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p47.95, 1080p48, 1080p50, 1080p59.94, 1080p60, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080i50, 1080i59.94, 1080i60, 2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI, 2Kp47.95 DCI, 2Kp48 DCI, 2Kp50 DCI, 2Kp59.94 DCI and 2Kp60 DCI, 2KPsF25 DCI, 2KPsF29.97 DCI and 2KPsF30 DCI. When connected to 3G-SDI sources, you can also switch between level A and B.

Traditional RS-422 for Broadcast Automation Control

Traditional RS-422 for Broadcast Automation Control

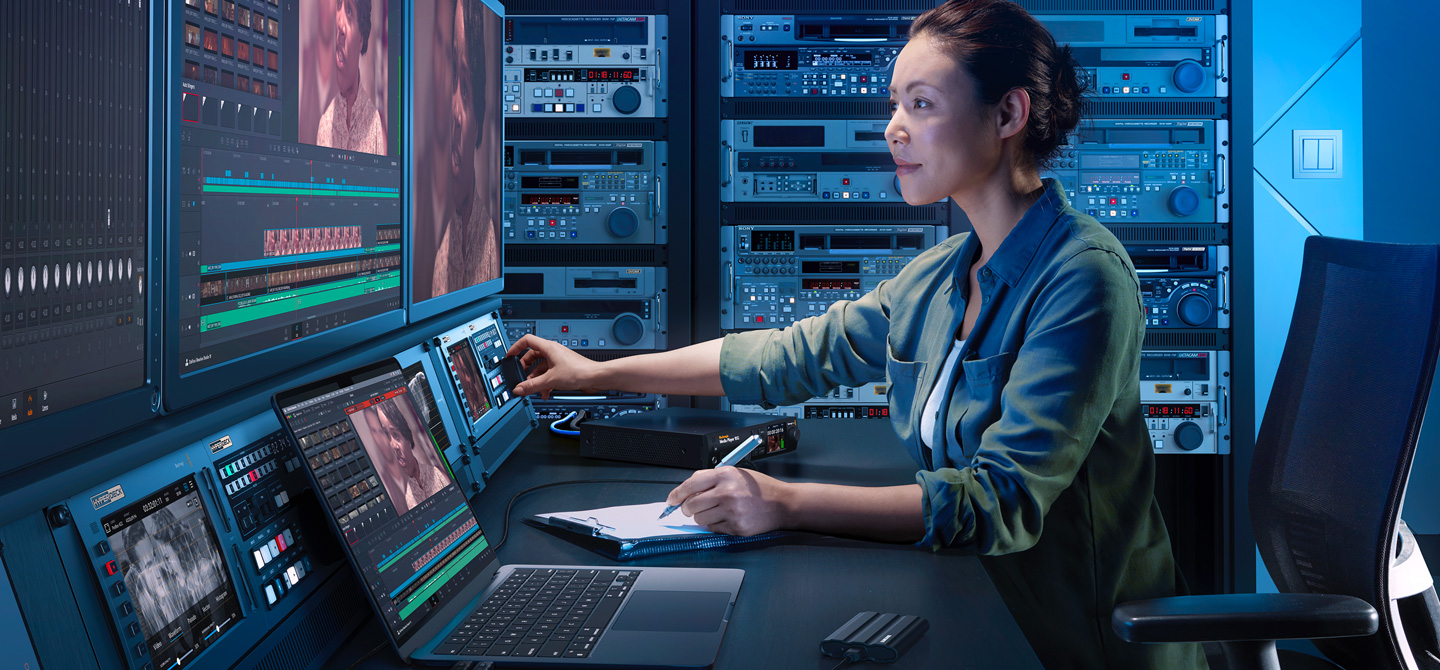

The most popular control connection used on broadcast decks since the early 1980s is the RS-422 protocol. Originally developed by Sony, RS-422 is used on almost all broadcast gear. Blackmagic Media Player features an RS-422 deck control input connection so you can remote control software that supports the remote port using broadcast automation systems. The connection also supports extra commands for the Advanced Media Protocol for managing disk recorders. It's easy to use RS-422 and we even include documentation of the supported remote control commands in the Blackmagic Media Player instruction manual, which you can download from the support page of our web site.


Develop Custom Solutions with the SDK

If you want to develop custom solutions for Blackmagic Media Player then simply download the Blackmagic Desktop Video SDK for Mac, Windows and Linux free of charge! The developer SDK makes it easy to develop your own custom solutions for in house use, or to sell to other broadcasters! The Desktop Video SDK provides low level control of hardware when you need flexibility, as well as high level interfaces which are easier to use for more common tasks. Thousands of manufacturers and developers use Blackmagic DeckLink cards in their products, so you get the confidence that the Desktop Video SDK will provide a solid foundation for developing commercial quality broadcast solutions.

Customize Router Control with the Developer SDK
