SDI Video Inputs
1

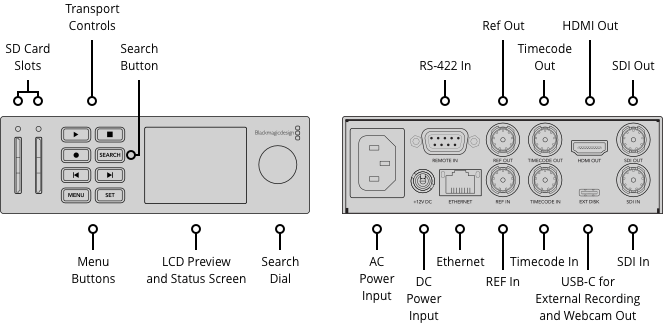

The most compact model of HyperDeck Studio is based on the Teranex Mini form factor. This modular design means that you can use a Teranex Mini Rack Shelf to rack mount 3 HyperDeck Studio HD Minis in a single rack unit, or you can combine them with other products such as switchers, converters or streaming processors. It might be small, but you still get powerful features, such as 3G-SDI in and out, HDMI output, dual SD card media slots, built in sync and timecode generators, front panel controls and both AC and DC power inputs. You can even connect the USB to a computer as HyperDeck Studio HD Mini works like a webcam so you can use any video software!
1
1
270Mb, 1.5G, 3G.
1
2.2 inch LCD
1 x BNC In, 1 x BNC Out.
1 x BNC In, 1 x BNC Out.
Tri-Sync or Black Burst.
16 channels embedded audio.
16 channels embedded audio.
8 channels embedded audio.
1 x RS-422 In.
Via user interface orBlackmagic HyperDeck Ethernet Protocol.
1Gb/s
1 x USB Type-C 3.0 (up to 5Gb/s) forexternal drive recording, webcam out,software configuration and updates.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2084and SMPTE 2108‑1.
HD RP188 and closed captioning CEA‑708. HDR Metadata supported on SDI.
525i59.94 NTSC, 625i50 PAL,
720p50, 720p59.94, 720p60,
1080i50, 1080i59.94, 1080i60,
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60,
2Kp23.98 DCI, 2Kp24 DCI, 2Kp25 DCI, 2Kp29.97 DCI, 2Kp30 DCI
Television standard 24‑bit, 48 kHz sample rate.
4:2:2 YUV
10‑bit
REC 601, REC 709, REC 2020.
Hybrid Log‑Gamma, ST2084 300, ST2084 500, ST2084 800, ST2084 1000, ST2084 2000, ST2084 4000, ST2084
Auto detection of SD and HD.
2 x SD card slots1 x USB-C 3.0 expansion port for externalrecording of SD, HD and 2K DCI.
UHS-I and UHS-II SD cards.
Can format media to ExFAT (Windows/Mac)or HFS+ (Mac) file systems.
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 1080p60. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
8 buttons for transport and device control with search dial and 2.2 inch color display.
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol. Supports remote FTP file upload.
Blackmagic OSBlackmagic HyperDeck SetupInternal Software UpgradeLoaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Mac 10.15 Catalina,
Mac 11.1 Big Sur or later.
Windows 10, 64-bit.
Built in 2.2 inch LCD for video, audio and timecode monitoring and menu settings.
LED indicator lights above the SD media slots.
1 x Internal 100 - 240V AC 50/60Hz.
1 x Locking 5.5mm barrel 12V DC Infor external power supply or battery use.
50 W max.
HyperDeck Extreme Control
Teranex Mini Rack Shelf

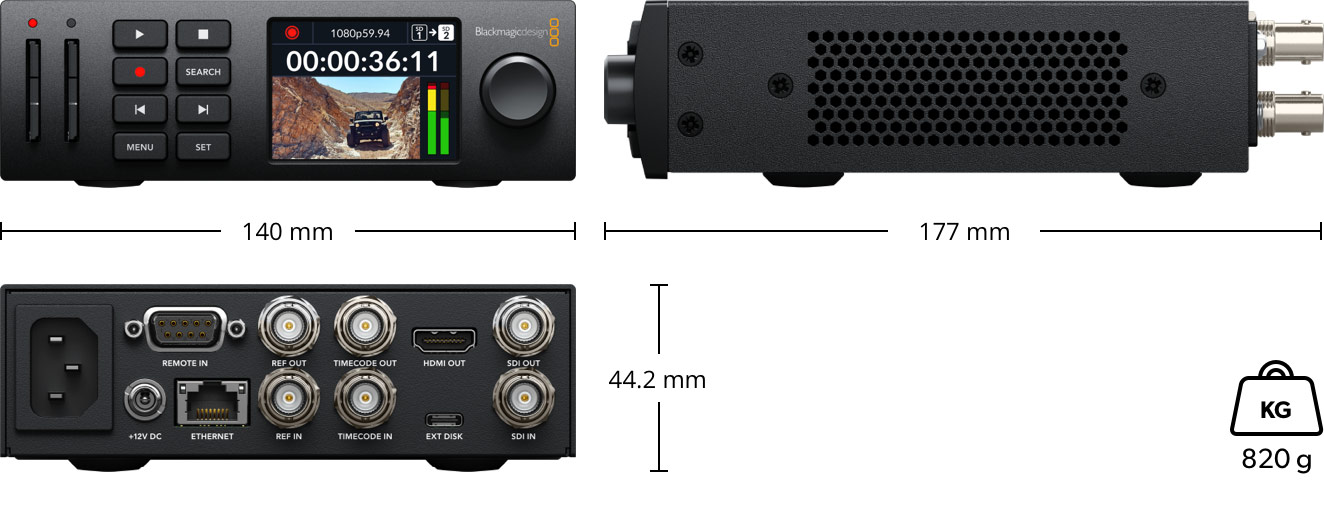

One third rack unit width, 1 rack unit height.
0° to 40° C (32°to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non‑condensing
HyperDeck Studio HD Mini
12 Month Limited Manufacturer's Warranty.
