SDI Video Inputs
1
HyperDeck Extreme 4K HDR features the trusted reliability of HyperDeck combined with new innovations such as space saving H.265 files, optional internal cache, 3D LUTs and HDR support! With the ability to record up to native 4K in H.265, you get reduced storage costs and amazing image quality. The large touch screen ensures a perfect view of your recording as well as control over all deck settings.
1
3 (12G-SDI A and B plus 3G-SDI Monitor Out)
270Mb, 1.5G, 3G, 6G, 12G.
1
1
1 x Component YUV on 3 BNCs,
1 x Composite NTSC/PAL on 1 BNC.
None
4 Channels of professional balanced analog audio via XLR connectors and 2 channels of consumer unbalanced via RCA connectors.
Mono
7 inch 1920 x 1200. 2000 nit DCI-P3 100% HDR LCD
1 x XLR in and 1 x XLR out.
Tri-Sync or Black Burst.
16 channels embedded audio.
16 channels embedded audio.
8 channels embedded audio.
8 channels embedded audio.
1 x RS-422 In, 1 x RS-422 Out.
Via user interface or Blackmagic HyperDeck Ethernet Protocol.
10Gb/s
1 x USB-C 3.1 Gen 2 (up to 10Gb/s) for external disk recording.
1 x USB-C for software updates.
525i59.94 NTSC, 625i50 PAL
720p50, 720p59.94, 720p60
1080i50, 1080i59.94, 1080i60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080p23.98 DCI, 1080p24 DCI, 1080p25 DCI
1080PsF23.98 DCI, 1080PsF24 DCI, 1080PsF25 DCI
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
2160p23.98 DCI, 2160p24 DCI, 2160p25 DCI
SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 424M, SMPTE 425M Level A and B, SMPTE 2081-1, SMPTE 2081-10, SMPTE 2082-1, SMPTE 2082-10 and SMPTE 2084.
HD RP188 and closed captioning CEA-708. HDR Metadata supported on SDI.
Television standard 24-bit, 48 kHz sample rate.
4:2:2 YUV
10-bit
REC 601, REC 709, REC 2020. 33 point 3D LUTS can be applied via the LUTS menu tab.
Auto detection of SD, HD, 6G‑SDI, and 12G-SDI.
HDMI input is unable to capture from copy protected HDMI sources. Always confirm copyright ownership before capture or distribution of content.
Slot for optional M.2 PCIe NVMe card for cache recording up to 16Gb/s. 60mm 80mm and 110mm supported.
2 x CFast 2.0 card slots and 1 x USB-C 3.1 Gen 2 expansion port for external recording of SD, HD, and Ultra HD.
CFast card and external USB-C flash drives.
Can format media to ExFAT (Windows/Mac) or HFS+ (Mac) file systems.
ProRes HQ QuickTime, ProRes 422 QuickTime, ProRes LT QuickTime, ProRes Proxy QuickTime for all formats up to 2160p60. Playback only of ProRes 4444 QuickTime up to 2160p60 with auto routing of fill and key over SDI A and B outputs. DNxHD 220x, DNxHD 220x MXF, DNxHD 145, DNxHD 145 MXF, DNxHD 45, DNxHD 45 MXF for 720p and 1080p HD formats up to 60fps. DNxHR HQX, DNxHR HQX MXF, DNxHR SQ, DNxHR SQ MXF, DNxHR LB, DNxHR LB MXF for 2K DCI and 2160p formats up to 60fps. H.265 High 4:2:0 10‑bit, H.265 Medium 4:2:0 10‑bit, H.265 Low 4:2:0 10‑bit for all 2160p formats up to 60 fps. H.264 SDI 4:2:2 10‑bit, H.264 High 4:2:0 8‑bit, H.264 Medium 4:2:0 8‑bit, H.264 Low 4:2:0 8‑bit for all formats up to 1080p60.
AAC 2 Channels.
PCM 2, 4, 8, 16, 32 or 64 Channels.
Waveform, RGB Parade, Vector and Histogram scopes in broadcast quality 10-bit.
Picture in picture, picture overlay with opacity control. Waveform and RGB parade with standard and HDR graticules and Vector with zoom.
None
Integrated capacitive touchscreen LCD with onscreen controls for settings and navigating menus.
RS-422 deck control, SDI start/stop, timecode run. Includes Blackmagic HyperDeck Ethernet Protocol.
Blackmagic OS
Blackmagic HyperDeck Setup
Loaded at system start, or via Blackmagic HyperDeck Setup using USB port.
Mac 11.1 Big Sur,
Mac 12.0 Monterey or later.
Windows 10 and 11.
Built in LCD for video, audio and timecode monitoring and menu settings.
1 x Internal 100 - 240V AC.
1 x 4 pin XLR 12V DC IN for external power or battery use.
190W max.
HyperDeck Extreme Control
HyperDeck Extreme Rack Kit
3 rack units height, half rack width.
0° to 40° C (32°to 104° F)
-20° to 60° C (-4° to 140° F)
0% to 90% non-condensing

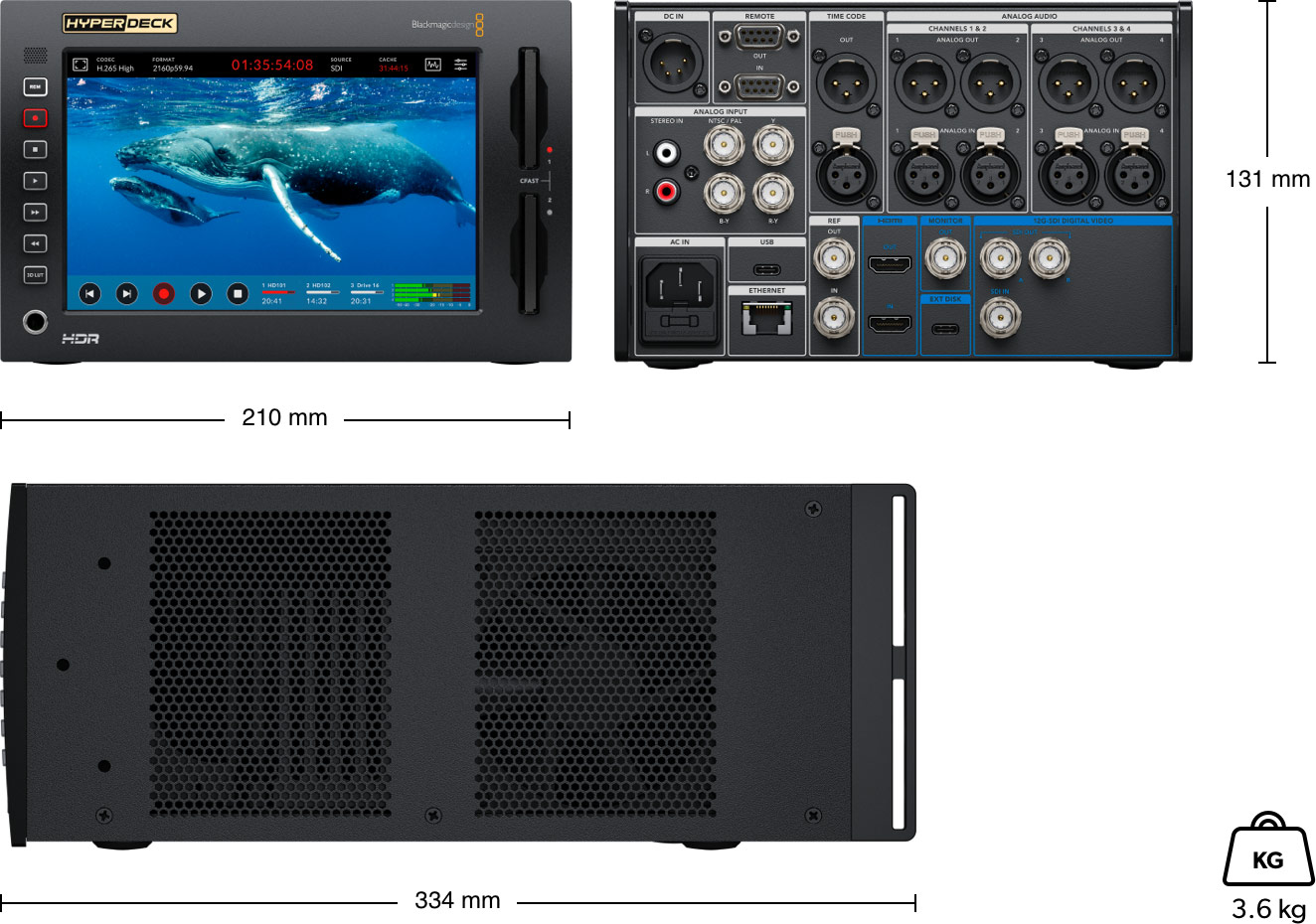

HyperDeck Extreme 4K HDR
Welcome wallet with QR code for software download
12 Month Limited Manufacturer's Warranty.
