Now in a feature-packed new Chrome Edition, Qu-32 reshapes digital mixing, combining innovative design and exceptional functionality to create a superb professional mixing experience. Bristling with all the features you’d expect from a top of the range digital console and incorporating technologies pioneered on the GLD and iLive digital mixing systems, Qu-32 has the power and pedigree to deliver class-leading audio performance.
Qu series features include multitrack recording direct to USB, Automatic Mic Mixing, ProFactory mic presets, plus an ever growing ecosystem of apps, accessories and remote I/O.
Whether you’re switching from analogue or updating your digital desk, it’s time to experience the new digital with Qu-32.
Qu provides much more than just a mixer. Qu is an entire ecosystem with Remote AudioRacks allowing I/O to be placed where it’s needed, ME Personal Mixers expanding monitor mixes and enabling simple, time-saving local control, Qu Apps for complete remote setup and wireless mixing on stage or anywhere else in the venue, ProFactory Mic presets to speed up preparation time and ensure the best sound, plus USB recording and DAW integration for powerful workflow optimisation from one centrepiece device.
Qu-32 features thirty-two AnalogiQTM digitally controlled preamps with advanced zero-crossing detection and a padless 1dB-step gain stage, which have been closely allied to the DSP for optimal gain accuracy and audio transparency. The analogue signal is captured by high-class, low latency 24bit analogue to digital converters, and are matched to 24bit digital to analogue converters to deliver the required high quality output. The AnalogiQTM preamp design has been refined to offer superb transparency, minimal distortion and an ultra-low noise floor, with a warm, musical sound that is missing from some digital consoles.

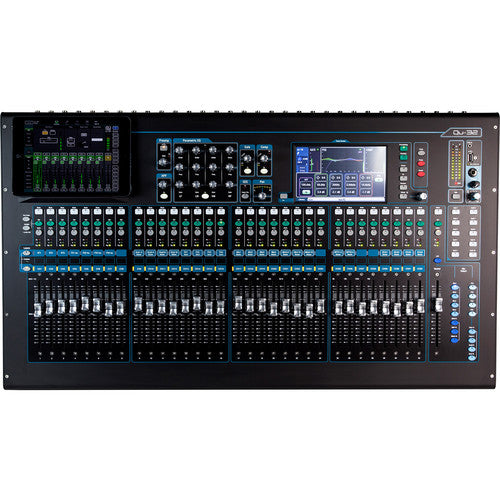

Having massive processing power and advanced functionality counts for nothing if you can’t access the controls you need in a heartbeat. The 800×480, True Colour Touchscreen and its dedicated rotary encoder form the heart of Qu-32’s interface, providing super-fast access to all settings and parameters. Dedicated keys and screen tabs quickly guide you to meter and RTA views, FX racks, channel processing, USB audio control, scenes, setup menus and much more. Complementing the touchscreen is the SuperStrip – a set of single function physical controls for instant access to gain, HPF, 4 band PEQ, gate, compressor, GEQ and pan. The screen overview also follows the control being turned.
Qu-32 has a fader per mono input channel and fewer fader layers for simpler, quicker workflow. Some digital mixers don’t offer a fader per physical input, meaning you have to access an additional fader layer to control these channels. This can be confusing and time consuming. Because every mic input is presented on its own fader for fast, easy control, this makes Qu-32 the perfect mixer for first-time converts from analogue to digital and those not comfortable working with several layers of faders.

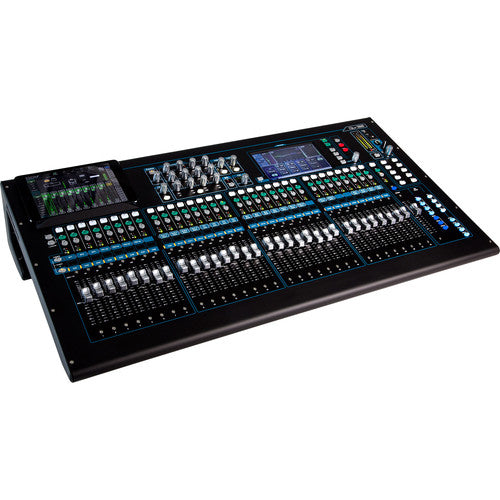

True digital mixing is about being able to save and recall Scenes (snapshots) at the press of a button. Qu can store up to 100 full Scenes for recall and Channels or Mixes can be made Safe from being overwritten. Qu-32 features 33 motorized ALPS faders, 32 allow instant access to all input channels and masters over 2 layers, and a dedicated master fader dynamically follows the Mix selection. A third user-defined Custom layer is available for ad-hoc strip layout, where any combination of Inputs, FX Sends, FX Returns, DCA’s and Mix masters can be assigned.
Qu-32 provides 4 stereo Groups which can be used as subgroups to the main LR mix for group level and processing, for example to buss-compress an entire drum kit, or to tame multiple lavalier mics with a single graphic EQ. Groups can also be switched to Mix mode to provide additional outputs for monitor mixes.
Qu-32 adds 2 further stereo Matrix outputs equipped with full processing to the console’s extensive I/O. A Matrix is a ‘mixer within a mixer’, fed from any combination of Group 1-4, Mix 1-10, and main LR. It can be used to provide a broadcast feed, a recording mix, or duplicate the main outputs for delay stacks, fill or zone speakers where independent GEQ and delay is applied.
Qu-32 has an integrated multitrack USB recorder, providing 18 channels of 48kHz, 24bit recording and playback straight to / from your USB key or hard drive. Capturing multitrack recordings of your shows has never been so easy. A selectable stereo pair can be recorded alongside the 16 Mono channels, and multitrack audio can be played back to the 16 Mono inputs plus ST1. On top of this, Qu-Drive also provides stereo recording patchable from any pair of Mix outputs, the Main LR (pre, post, or summed to mono) or even the PAFL bus, with 2- track stereo playback to ST3.
AMM is vital in applications such as conferences, meetings and panel discussions where a number of microphones are open at the same time. Reducing background noise and minimising the risk of feedback, the Automatic Microphone Mixer helps the engineer to manage the levels of multiple mic inputs, ensuring that each speaker’s contribution is heard clearly. The D-Classic dynamic gain sharing algorithm is inspired by industry standard automixers. Up to 16 microphone sources can be mixed at once, with each channel having a priority setting which determines its ‘weight’ in the total system gain.
Qu-32 is equipped with 5 high efficiency ARM core processors. Between them, the ARM cores provide state-of-the-art processing, working in parallel to deliver extensive control, instant-on operation, and lightning-fast response, with dedicated cores running the touchscreen and surface, USB streaming, Qu-Drive multi-channel recording / playback, Ethernet control and fader automation. The mixer’s DSP farm exploits next generation dual-core DSPs, giving 10 DSP cores, 8 of which are dedicated to channel and mix processing alone. Qu-32’s DSP architecture employs varied bit depths, tailored to specific algorithms, with 48 bits on critical EQ functions and a 56-bit accumulator on the mix bus where it really counts, allowing every nuance of the audio to be captured in the final mix.
